Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Factory Float 34
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
Suspension Fork
Fox 34 Factory StepCast Kashima FIT4 100mm Remote Lockout, 15x110 Boost
Rear Shock
Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 100mm 190x40mm
Drivetrain
Rear Derailleur
SRAM XX1 AXS 12s
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM XX1 AXS 12s 10-52t
Crank
SRAM XX1 AXS 12s 34t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
DT Swiss 180 Ratchet EXP 36
Rear Hub
DT Swiss 180 Ratchet EXP 36
Rims
DT Swiss XRC 1200
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120tpi, Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo
Headset
Integrated Full Internal Cable Routing
Seat
Saddle
Selle Italia SLR Boost X-Cross Superflow
Seatpost
Megamo Elite Light SP 31,6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 696 mm | 721 mm | 752 mm | 785 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 106 mm | 105 mm | 106 mm |
| Stack | 597 mm | 597 mm | 610 mm | 629 mm |
| Reach | 425 mm | 449 mm | 474 mm | 500 mm |
| Top Tube Length | 564 mm | 589 mm | 615 mm | 648 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 422 mm | 441 mm | 482 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 96 mm | 96 mm | 111 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1129 mm | 1154 mm | 1185 mm | 1218 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

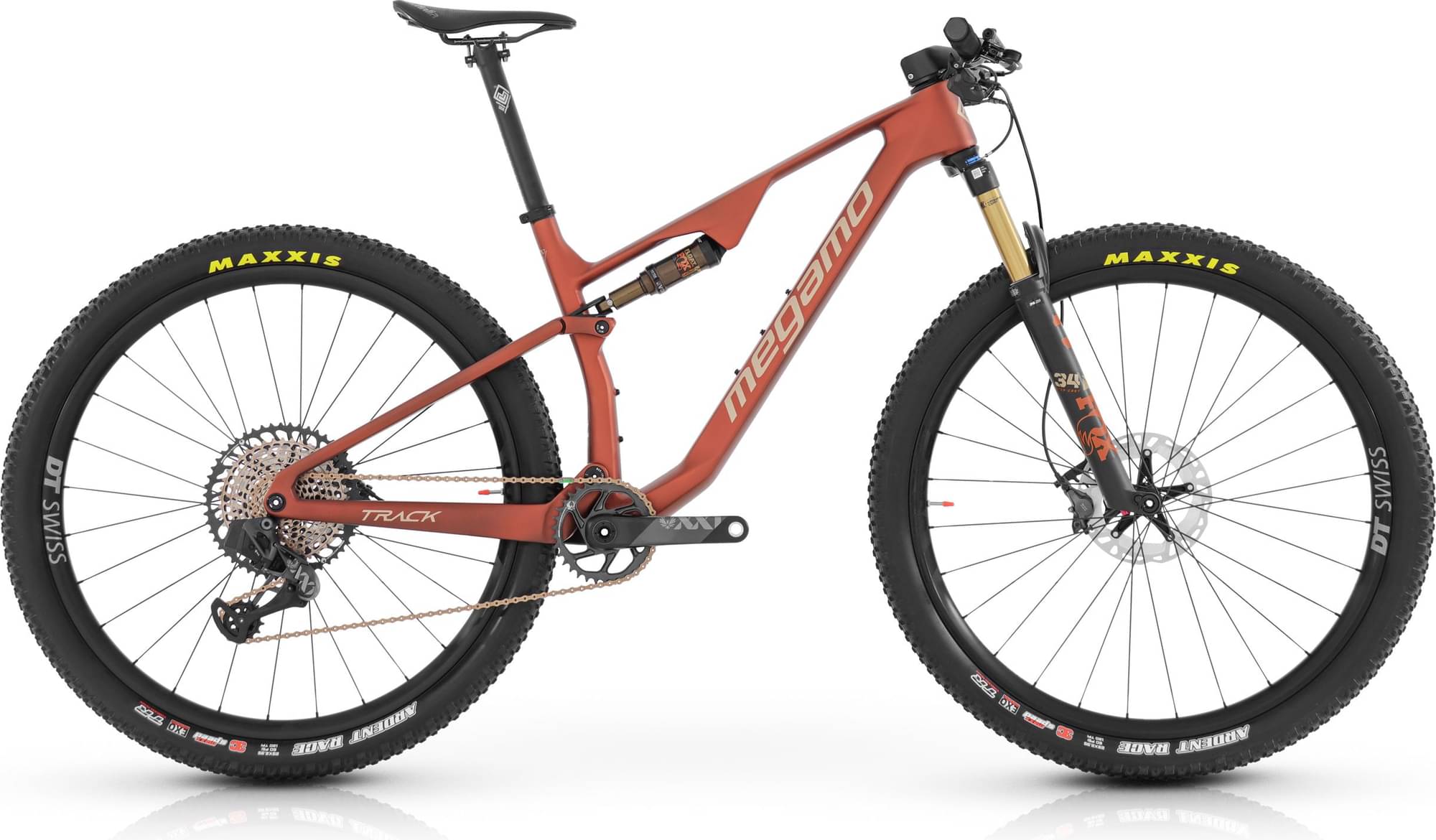

TRACK AXS 00 completes the Megamo Track model. There are 51 bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Megamo TRACK AXS 00 bike has the Fox Float DPS Factory Kashima model installed, and has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the TRACK AXS 00 model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Megamo TRACK AXS 00 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
