Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 100mm -
Fork Fox Performance Float 34
-
Groupset GX Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Suspension Fork
Fox 34 Performance StepCast FIT4 100 mm Remote Lockout, 15x110 Boost
Rear Shock
Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 100mm 190x40mm
Drivetrain
Rear Derailleur
SRAM GX AXS 12s
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM GX Eagle 12s 10-52t
Crank
SRAM GX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
DT Swiss X 1900
Rear Hub
DT Swiss X 1900
Rims
DT Swiss X 1900
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120tpi, Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo
Headset
Integrated Full Internal Cable Routing
Seat
Saddle
Selle Italia Shortfit Open-fit Start Up 144
Seatpost
Megamo Alloy 31,6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.33 mm | 1.29 mm | 1.26 mm |
| Bottom Bracket Height | 331 mm | 331 mm | 331 mm | 331 mm |
| Front Center | 696 mm | 721 mm | 752 mm | 785 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 106 mm | 105 mm | 106 mm |
| Stack | 597 mm | 597 mm | 610 mm | 629 mm |
| Reach | 425 mm | 449 mm | 474 mm | 500 mm |
| Top Tube Length | 564 mm | 589 mm | 615 mm | 648 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 422 mm | 441 mm | 482 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 96 mm | 96 mm | 111 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1129 mm | 1154 mm | 1185 mm | 1218 mm |
| Bottom Bracket Drop | 43 mm | 43 mm | 43 mm | 43 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

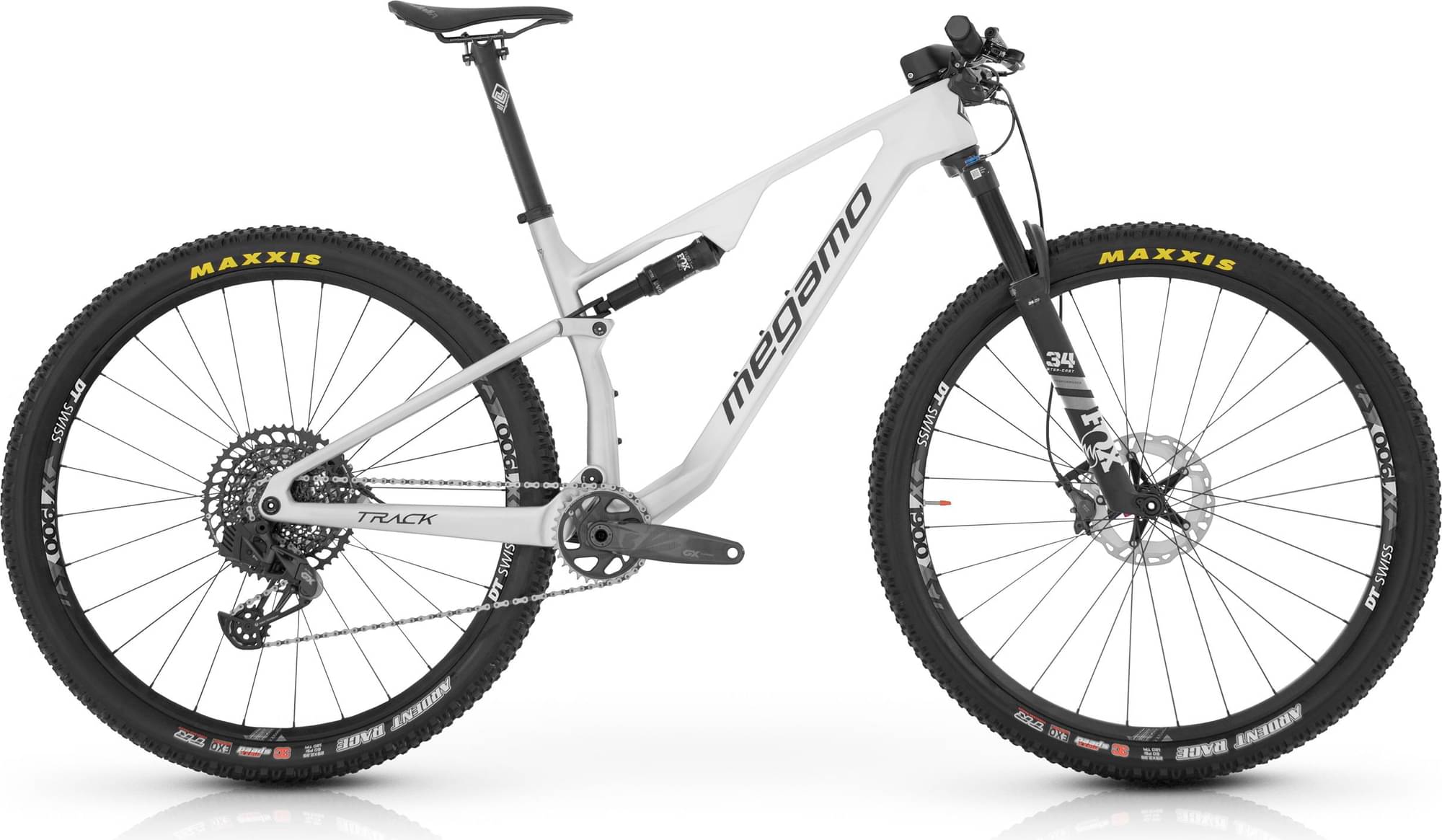

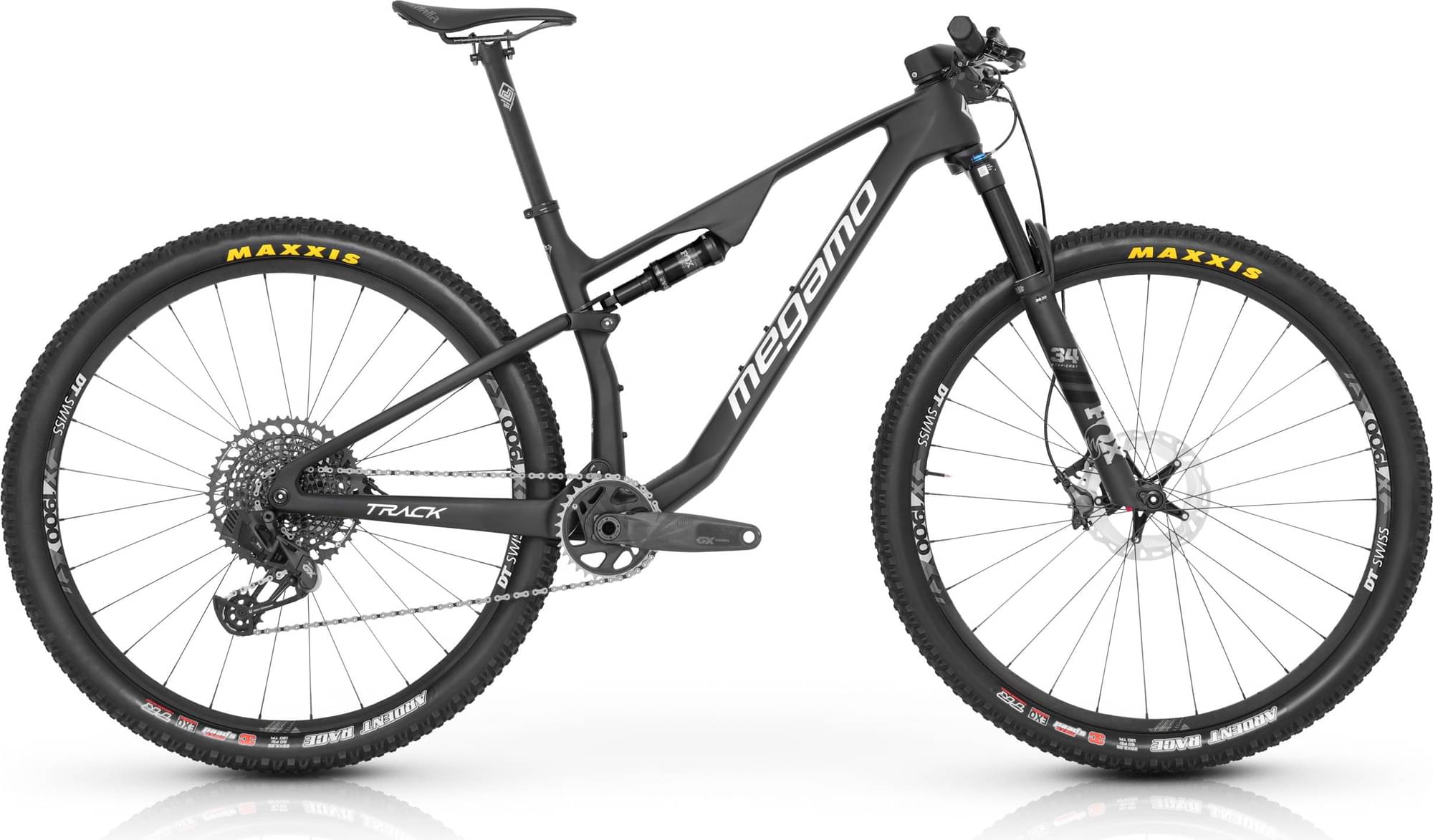

TRACK AXS 03 is a Megamo Track model. 51 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The TRACK AXS 03 comes factory-installed with the Fox Performance Float 34 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Megamo TRACK AXS 03 bike has the Fox Float DPS Performance Elite model installed, and has a travel of 100mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the TRACK AXS 03 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo TRACK AXS 03 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
