Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Rhythm Float 34
-
Groupset SX Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 TRACK FS Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm Travel 100mm
Suspension Fork
Fox 34 Rhythm 120mm Travel, Dual Remote Lockout, 15x110 Boost
Rear Shock
Fox Float Performance Elite, Remote Lockout, Evol LV Megamo Custom Reb. Adj. Travel 100 Lockout 165x38mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s
Crank
SRAM SX Eagle 12s 32T
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
15x110 Boost / 12x148 Boost
Rear Hub
15x110 Boost / 12x148 Boost
Rims
Ready GR 25 TR - 15x110 / 12x148 Boost
Tires
Maxxis Rekon Race 29 x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano MT-500 Hydraulic Disc
Cockpit
Stem
Megamo Elite Stem
Handlebar
Megamo Flat 720
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Sellie Italia X-LR
Seatpost
Telescopic Dropper post 31,6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.36 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Stack | 578 mm | 578 mm | 588 mm | 597 mm |
| Reach | 393 mm | 426 mm | 451 mm | 482 mm |
| Top Tube Length | 562 mm | 594 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 75 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

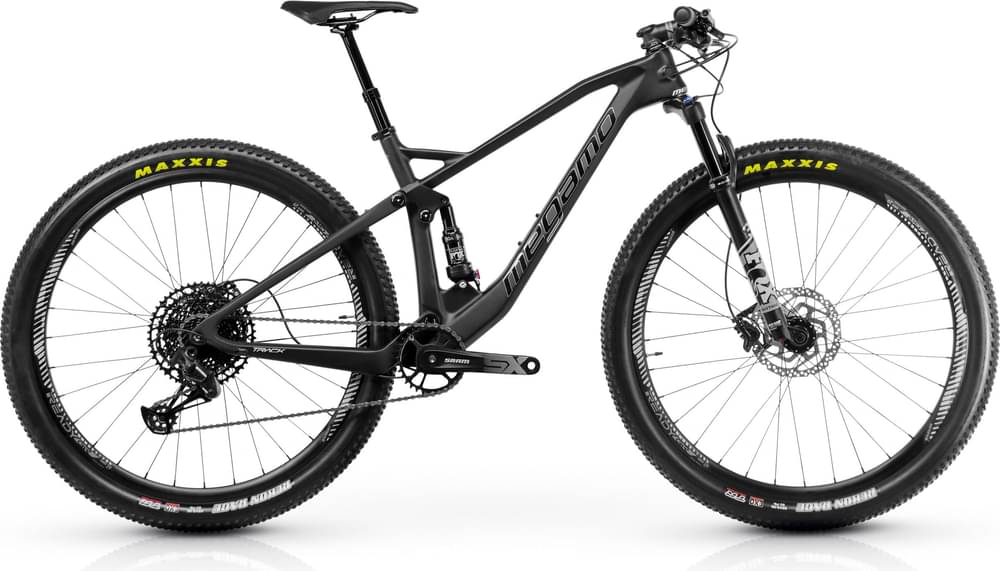

TRACK R120 10 is a Megamo Track model. Megamo launched 51 bikes of this model so far. Take a sneak peek at all Megamo Track bikes models from 2021, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
TRACK R120 10 components
Fork
Megamo TRACK R120 10 2021 bike is equipped with the Fox Rhythm Float 34 fork, and has 120mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float Performance Elite rear shock model, which has a travel of 100mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the TRACK R120 10 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The TRACK R120 10 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Megamo TRACK R120 10 comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
