Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 100mm -
Fork Fox Rhythm Float 34
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29 TRACK FS Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm Travel 100mm
Suspension Fork
Fox 34 Rhythm 120mm Travel, Dual Remote Lockout, 15x110 Boost
Rear Shock
Fox Float Performance Elite, Remote Lockout, Evol LV Megamo Custom Reb. Adj. Travel 100 Lockout 165x38mm
Drivetrain
Rear Derailleur
SRAM SX Eagle 12s
Shift Levers
SRAM SX Eagle 12s
Cassette
SRAM SX Eagle 12s
Crank
SRAM SX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
15x110 Boost / 12x148 Boost
Rear Hub
15x110 Boost / 12x148 Boost
Rims
Ready GR 25 TR - 15x110 / 12x148 Boost
Tires
Maxxis Rekon Race 29x2,35 - Tubeless Ready, EXO, Foldable, 120 TPI
Brakes
Brakes
Shimano MT-500 Hydraulic Disc
Cockpit
Stem
Megamo Elite Stem
Handlebar
Megamo Flat 720
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Selle Italia Model X
Seatpost
Telescopic Dropper post 31,6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.36 mm | 1.3 mm | 1.24 mm |
| Bottom Bracket Height | 308 mm | 308 mm | 308 mm | 308 mm |
| Stack | 578 mm | 578 mm | 588 mm | 597 mm |
| Reach | 393 mm | 426 mm | 451 mm | 482 mm |
| Top Tube Length | 562 mm | 594 mm | 621 mm | 644 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 75 ° |
| Seat Tube Length | 394 mm | 445 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 95 mm | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm |
| Bottom Bracket Drop | 66 mm | 66 mm | 66 mm | 66 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

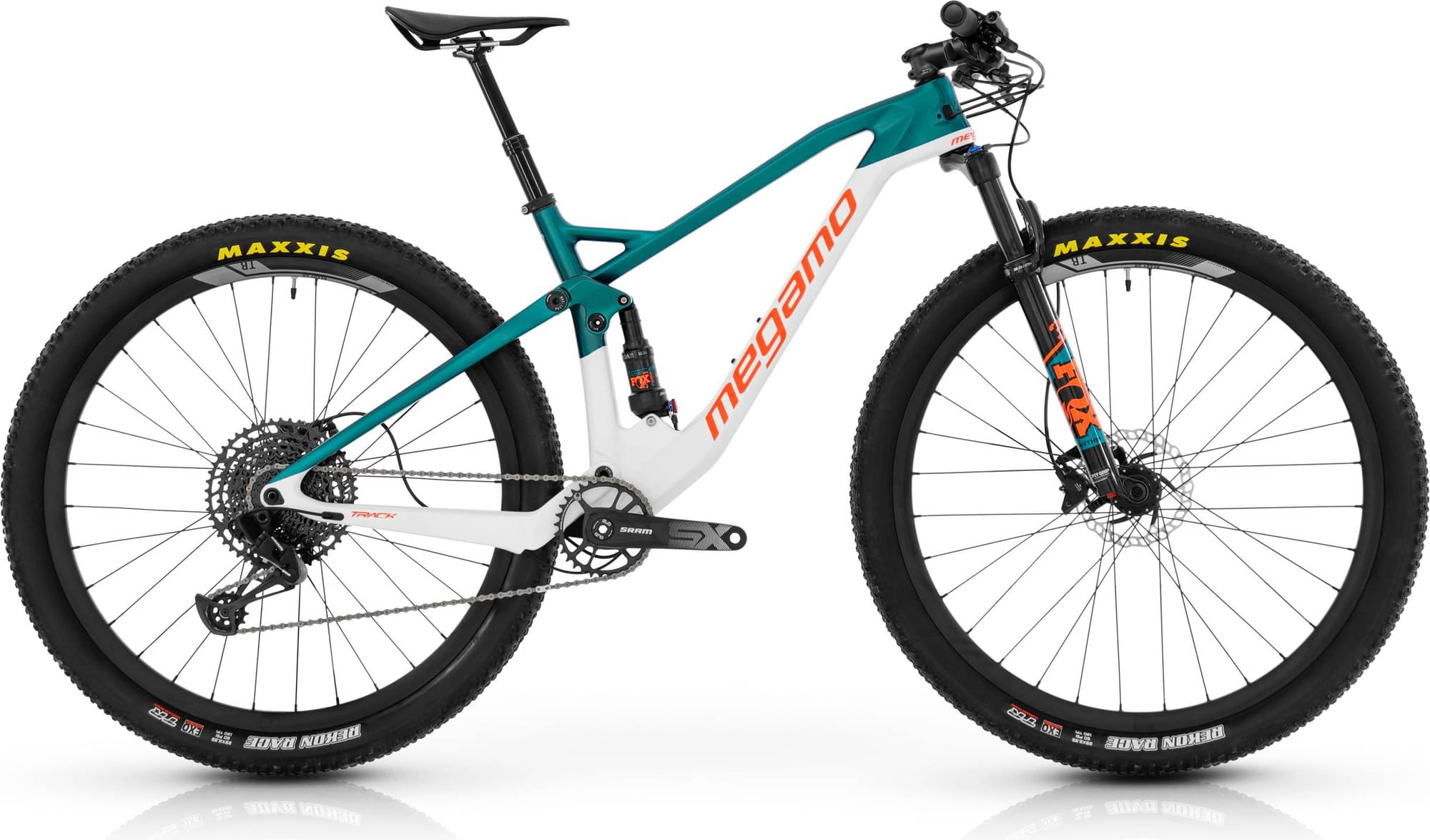

TRACK R120 10 LTD is part of the Megamo Track model. 51 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the Fox Rhythm Float 34 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the Fox Float Performance Elite rear shock model, which has a travel of 100mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The TRACK R120 10 LTD 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The TRACK R120 10 LTD has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Megamo TRACK R120 10 LTD includes a dropper post. Therefore, climbing or descending will be a breeze.
