Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Suspension Fork
Fox 34 Factory StepCast Kashima FIT4 120 mm Remote Lockout, 15x110 Boost
Rear Shock
Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Drivetrain
Rear Derailleur
SRAM GX AXS 12s
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM GX Eagle 12s 10-52t
Crank
SRAM GX Eagle 12s 32t
Bottom Bracket
BB86/BB92, press-fit
Wheels
Front Hub
DT Swiss XR 1700
Rear Hub
DT Swiss XR 1700
Rims
DT Swiss XR 1700
Tires
Maxxis Ardent Race 29x2,35 - Tubeless Ready, EXO, 3C Maxx Speed, Foldable, 120tpi, Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo
Headset
Integrated Full Internal Cable Routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Fox Transfer SL Factory Kashima 31,6. Internal routing, remote.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.37 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 703 mm | 728 mm | 759 mm | 792 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 604 mm | 604 mm | 618 mm | 635 mm |
| Reach | 415 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 568 mm | 593 mm | 622 mm | 652 mm |
| Seat Tube Angle | 75.6 ° | 75.6 ° | 75.6 ° | 75.6 ° |
| Seat Tube Length | 422 mm | 441 mm | 482 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 96 mm | 96 mm | 111 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1137 mm | 1162 mm | 1193 mm | 1226 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

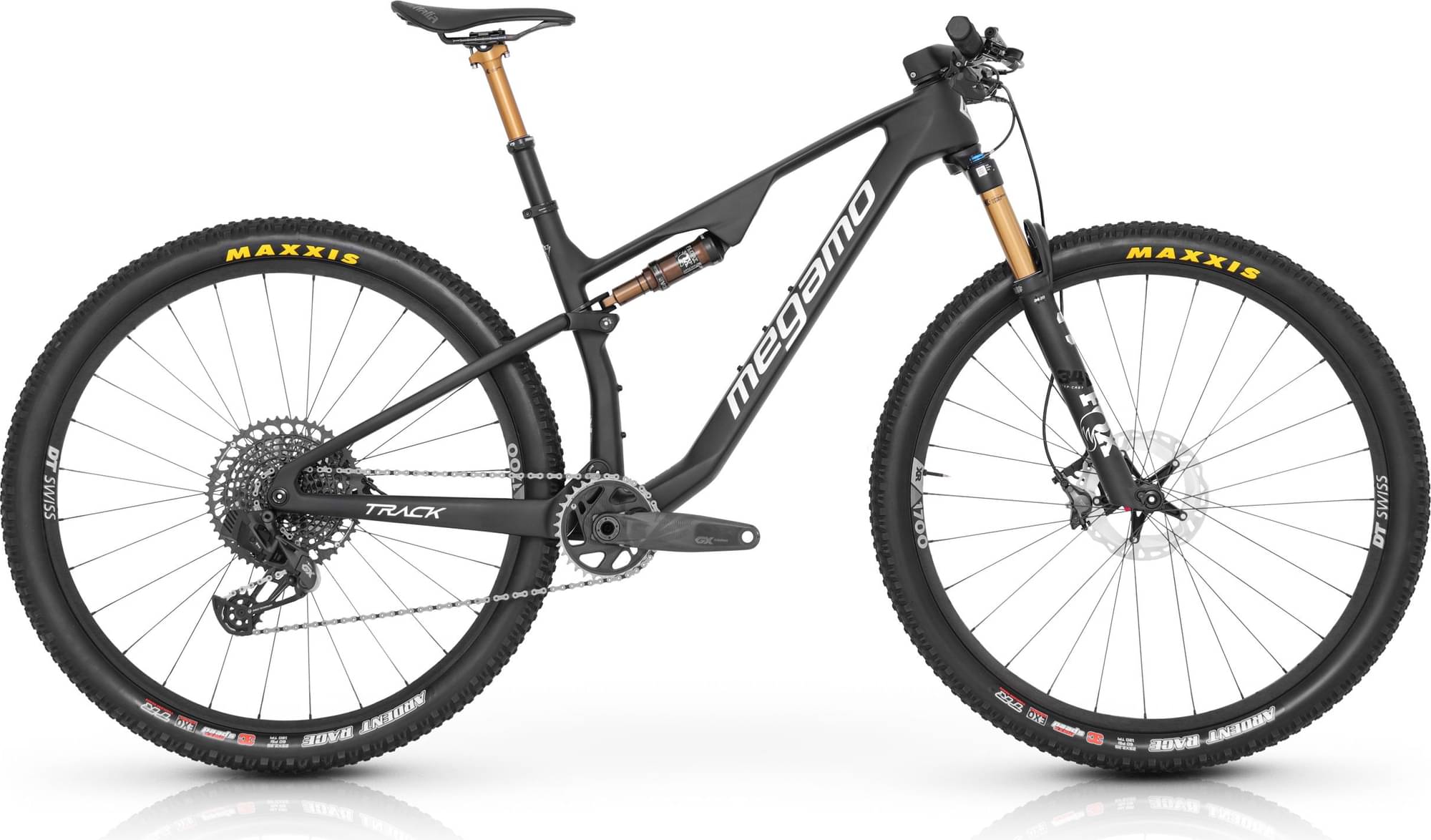

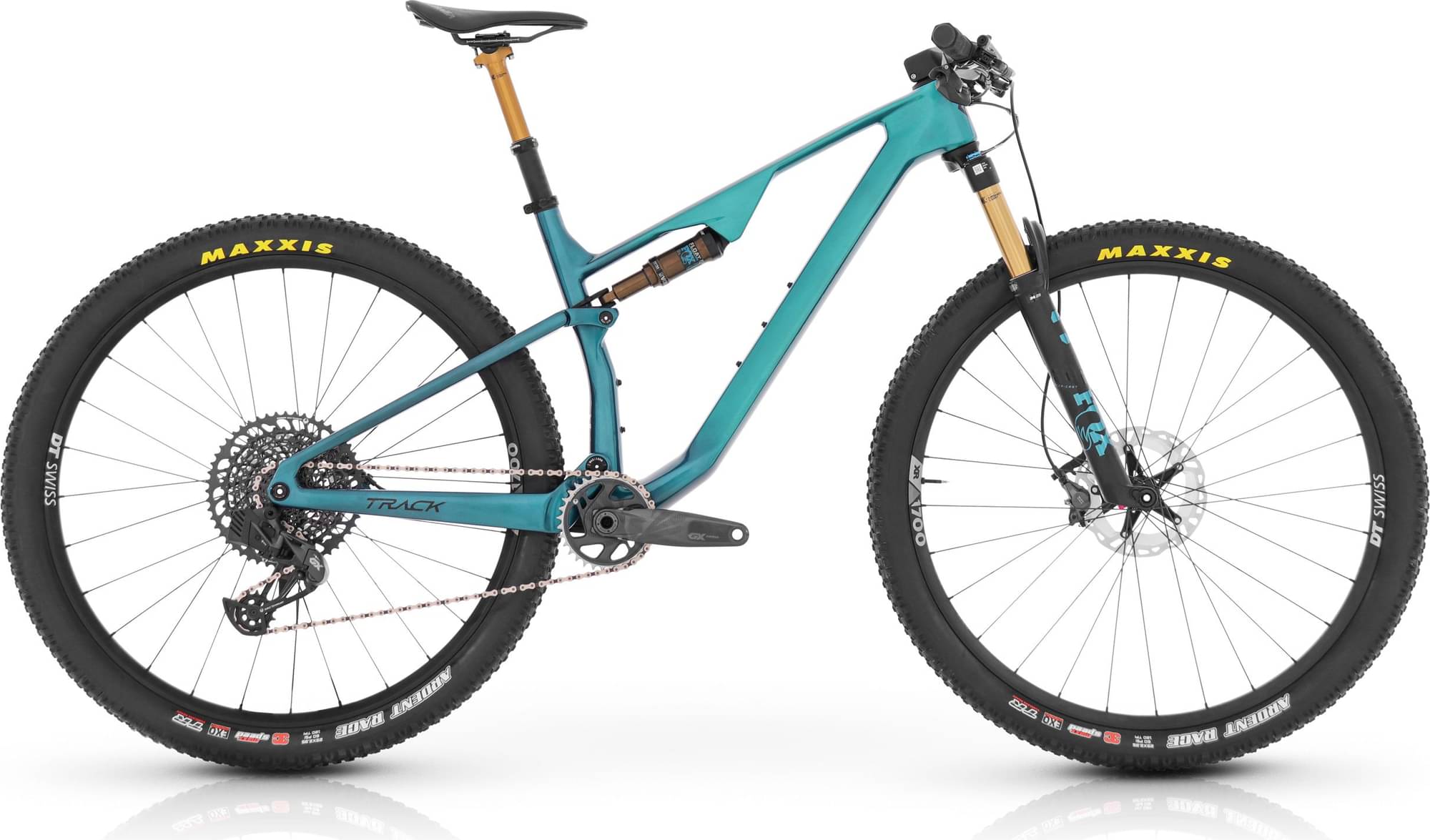

TRACK R120 AXS RACE is part of the Megamo Track model. Megamo released 51 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
TRACK R120 AXS RACE components
Fork
Megamo TRACK R120 AXS RACE 2023 bike is equipped with the Fox Factory Float 34 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is Fox Float DPS Factory Kashima, with a travel distance of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The TRACK R120 AXS RACE 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
TRACK R120 AXS RACE comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the TRACK R120 AXS RACE. Therefore, climbing or descending will be a breeze.
