Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle AXS, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
New Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
Suspension Fork
Fox 34 Factory StepCast Kashima FIT4 120 mm Remote Lockout, 15x110 Boost
Rear Shock
Fox Float DPS Factory Kashima, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12s
Shift Levers
SRAM Eagle AXS Controller
Cassette
SRAM GX Eagle T-type 10-52T
Crank
SRAM GX 12s T-type 34T
Bottom Bracket
BB86/BB92, press-fit
Wheels
Rims
DT Swiss XR 1700
Tires
Maxxis Ardent Race 29x2,35 - Tubeless Ready, EXO, 3C Maxx Speed, Foldable, 120tpi, Pirelli Scorpion XC H 29x2,4 ProWall - Tubeless Ready, 120tpi
Brakes
Brakes
Shimano XT 8100
Cockpit
Handlebar
Full Integrated Carbon handlebar Megamo
Headset
Integrated Full Internal Cable Routing
Seat
Saddle
Selle Italia Novus Boost Evo Superflow
Seatpost
Fox Transfer SL Factory Kashima 31,6. Internal routing, remote.
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.37 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 703 mm | 728 mm | 759 mm | 792 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 115 mm | 115 mm | 115 mm | 115 mm |
| Stack | 604 mm | 604 mm | 618 mm | 635 mm |
| Reach | 415 mm | 440 mm | 465 mm | 490 mm |
| Top Tube Length | 568 mm | 593 mm | 622 mm | 652 mm |
| Seat Tube Angle | 75.6 ° | 75.6 ° | 75.6 ° | 75.6 ° |
| Seat Tube Length | 422 mm | 441 mm | 482 mm | 520 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 96 mm | 96 mm | 111 mm | 130 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1137 mm | 1162 mm | 1193 mm | 1226 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

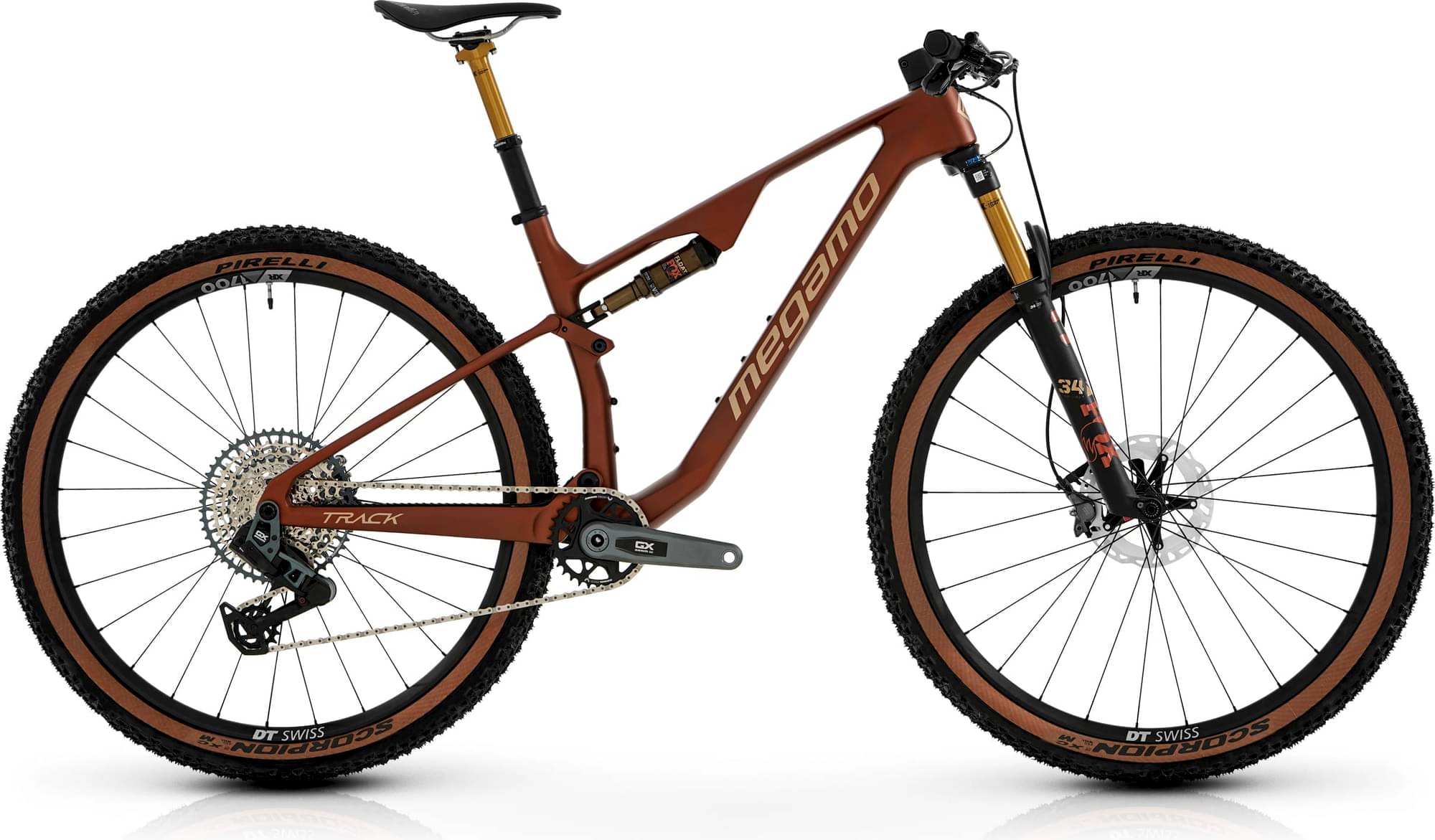

TRACK R120 AXS RACE SL is a Megamo Track model. 53 bikes variations carry this model name so far. You can easily view all of the Megamo Track bikes models from 2023, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
From the factory, it comes with the Fox Float DPS Factory Kashima rear shock model, which has a travel of 120mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The TRACK R120 AXS RACE SL 2023 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Megamo model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
