Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival, Rival 1 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Rear Derailleur
SRAM Rival 1x11s
Shift Levers
SRAM Rival 1 Hydraulic Disc
Cassette
SRAM Rival 11-42t
Crank
SRAM Rival 124mm XSYNC
Wheels
Front Hub
Vision Team 35 Disc CL 12x100 12x142
Rear Hub
Vision Team 35 Disc CL 12x100 12x142
Rims
Vision Team 35 Disc CL TLR
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Rival 1 Hydraulic Disc
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 606 mm |
| Reach | 375 mm | 375 mm | 377 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

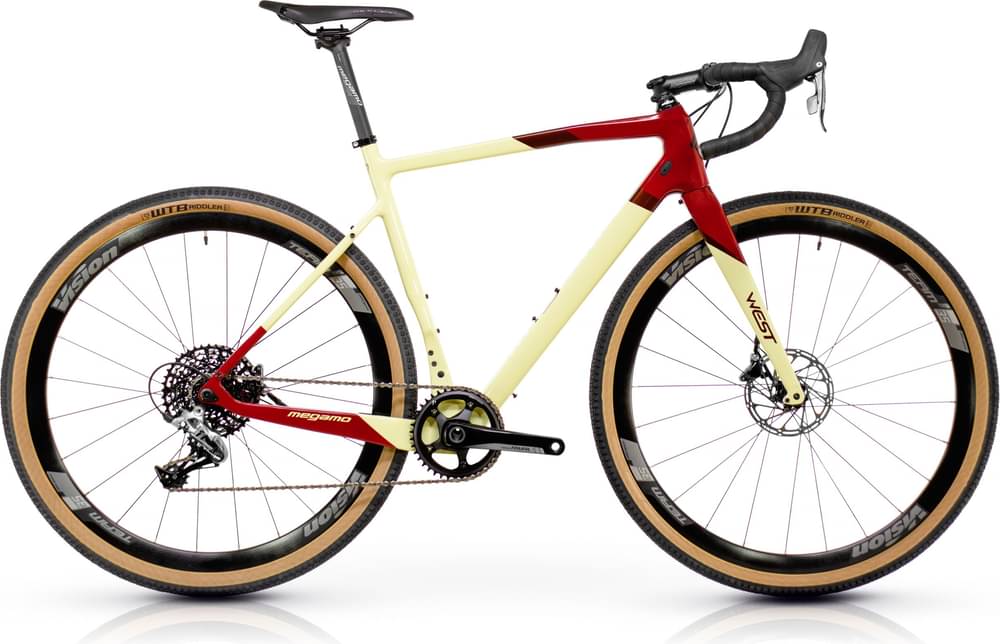

WEST 05 is a Megamo West model. 15 bikes variations carry this model name so far. Take a sneak peek at all Megamo West bikes models from 2021, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the WEST 05 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The WEST 05 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Megamo WEST 05 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
