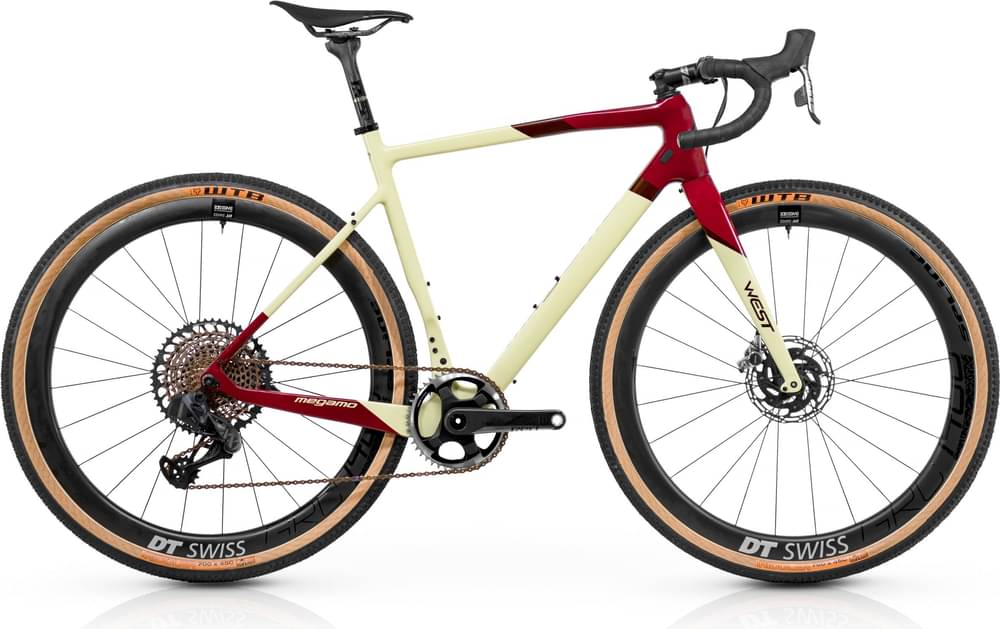

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset XX1 Eagle AXS, RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Rear Derailleur
SRAM XX1 AXS Eagle 1x12s
Shift Levers
SRAM Red AXS 12s
Cassette
SRAM XX1 AXS Eagle 10 -52 1x12s
Crank
SRAM Red AXS 42t
Wheels
Front Hub
DT Swiss GRC 1400 Spline / Vision SC-40 SL TLR / Zipp 303 S Carbon Tubeless Disc-brake
Rear Hub
DT Swiss GRC 1400 Spline / Vision SC-40 SL TLR / Zipp 303 S Carbon Tubeless Disc-brake
Rims
DT Swiss GRC 1400 Spline / Vision SC-40 SL TLR / Zipp 303 S Carbon Tubeless Disc-brake
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Red AXS 12s
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 606 mm |
| Reach | 375 mm | 375 mm | 377 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
WEST AXS 01 is a Megamo West model. 15 bikes variations carry this model name so far. Take a sneak peek at all Megamo West bikes models from 2021, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
WEST AXS 01 components
Fork material
WEST AXS 01 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the WEST AXS 01 bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Megamo WEST AXS 01 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
