Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Force eTAP -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Rear Derailleur
SRAM Force AXS Wide 12s
Shift Levers
SRAM Force AXS 12s
Cassette
SRAM Force AXS Wide 11-36t
Crank
SRAM Force AXS Wide 43-30
Wheels
Front Hub
Vision Team 35 Disc CL 12x100 12x142
Rear Hub
Vision Team 35 Disc CL 12x100 12x142
Rims
Vision Team 35 Disc CL TLR
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Force AXS 12s
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 606 mm |
| Reach | 375 mm | 375 mm | 377 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

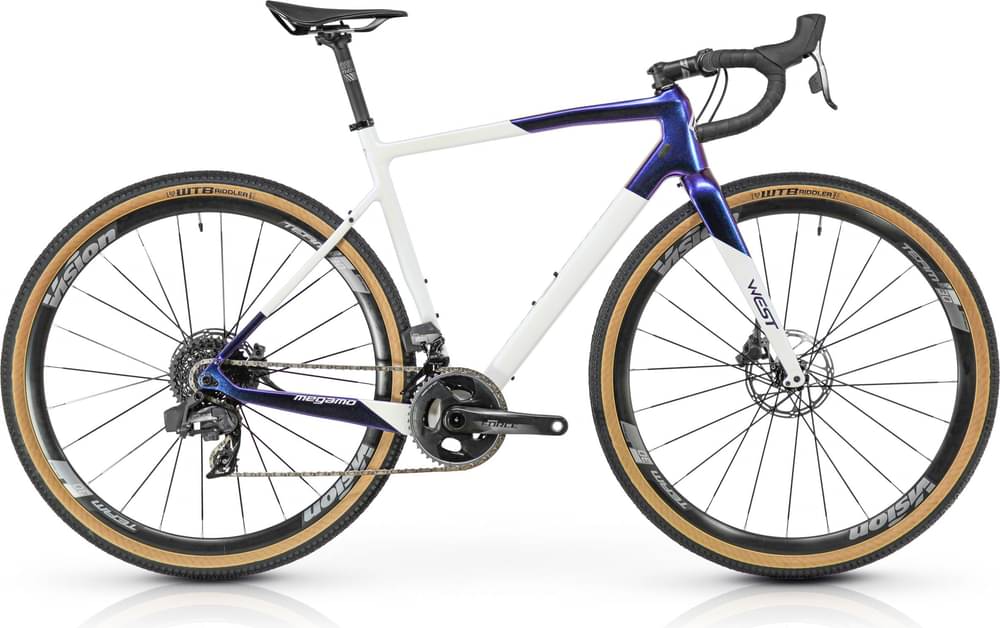

WEST AXS 02 completes the Megamo West model. Megamo launched 15 bikes of this model so far. Take a sneak peek at all Megamo West bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Megamo WEST AXS 02 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
WEST AXS 02 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
