Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset X01 Eagle AXS, Force eTAP -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Rear Derailleur
SRAM X01 AXS Eagle 10-50 1x12s
Shift Levers
SRAM Force AXS 12s
Cassette
SRAM GX Eagle 12s 10-50t
Crank
SRAM Force AXS 42t
Wheels
Front Hub
Vision Team 35 Disc CL 12x100 12x142
Rear Hub
Vision Team 35 Disc CL 12x100 12x142
Rims
Vision Team 35 Disc CL TLR
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Force AXS 12s
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 606 mm |
| Reach | 375 mm | 375 mm | 377 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

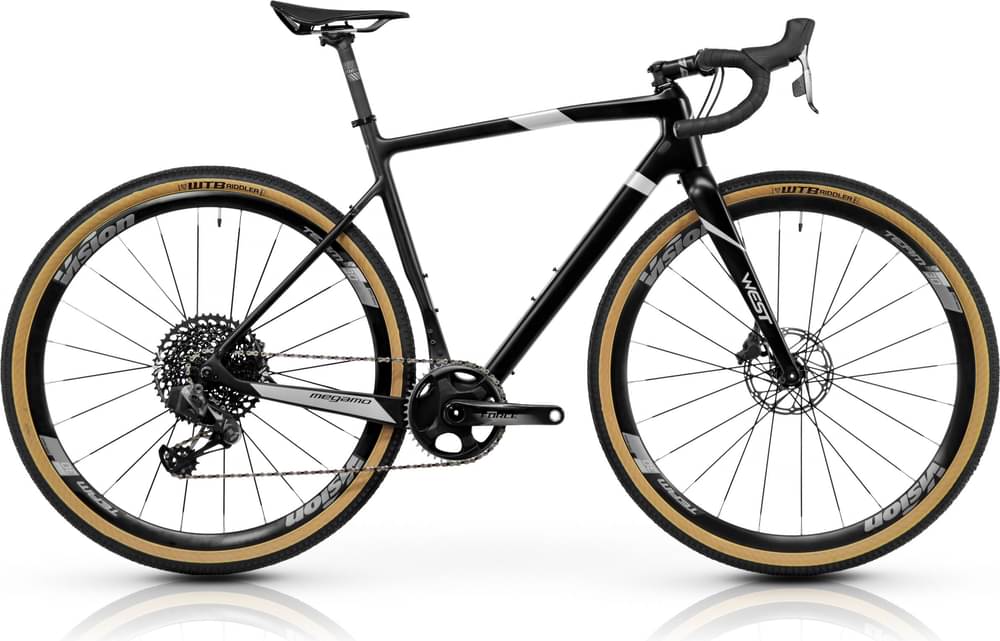

Model Overview
WEST AXS 03 completes the Megamo West model. 15 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the WEST AXS 03 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo WEST AXS 03 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
WEST AXS 03 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
