Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival eTap -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Gravel Advanced Composite Frame, Full Internal Cable Routing, Flat Mount Disc 12x142
Suspension Fork
Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Drivetrain
Shift Levers
SRAM Rival AXS 12s
Cassette
SRAM GX AXS 12s 10-52t
Crank
SRAM Rival AXS 12s 42t Powermeter
Wheels
Front Hub
Zipp 303 S Carbon Tubeless Disc-brake
Rear Hub
Zipp 303 S Carbon Tubeless Disc-brake
Rims
Zipp 303 S Carbon Tubeless Disc-brake
Tires
WTB Riddler 700 x 45c Tan Sidewall
Brakes
Brakes
SRAM Rival AXS 12s
Cockpit
Stem
Megamo FOV
Handlebar
Megamo Specific Gravel HB FOV Compact
Headset
FSA 1-1/8 1-1/2 * 1.5 Tapered
Seat
Saddle
Megamo Gravel
Seatpost
Megamo 27,2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.435 mm | 1.483 mm | 1.507 mm | 1.55 mm | 1.578 mm |
| Stack | 538 mm | 556 mm | 568 mm | 589 mm | 606 mm |
| Reach | 375 mm | 375 mm | 377 mm | 380 mm | 384 mm |
| Top Tube Length | 525 mm | 535 mm | 545 mm | 560 mm | 575 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 140 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

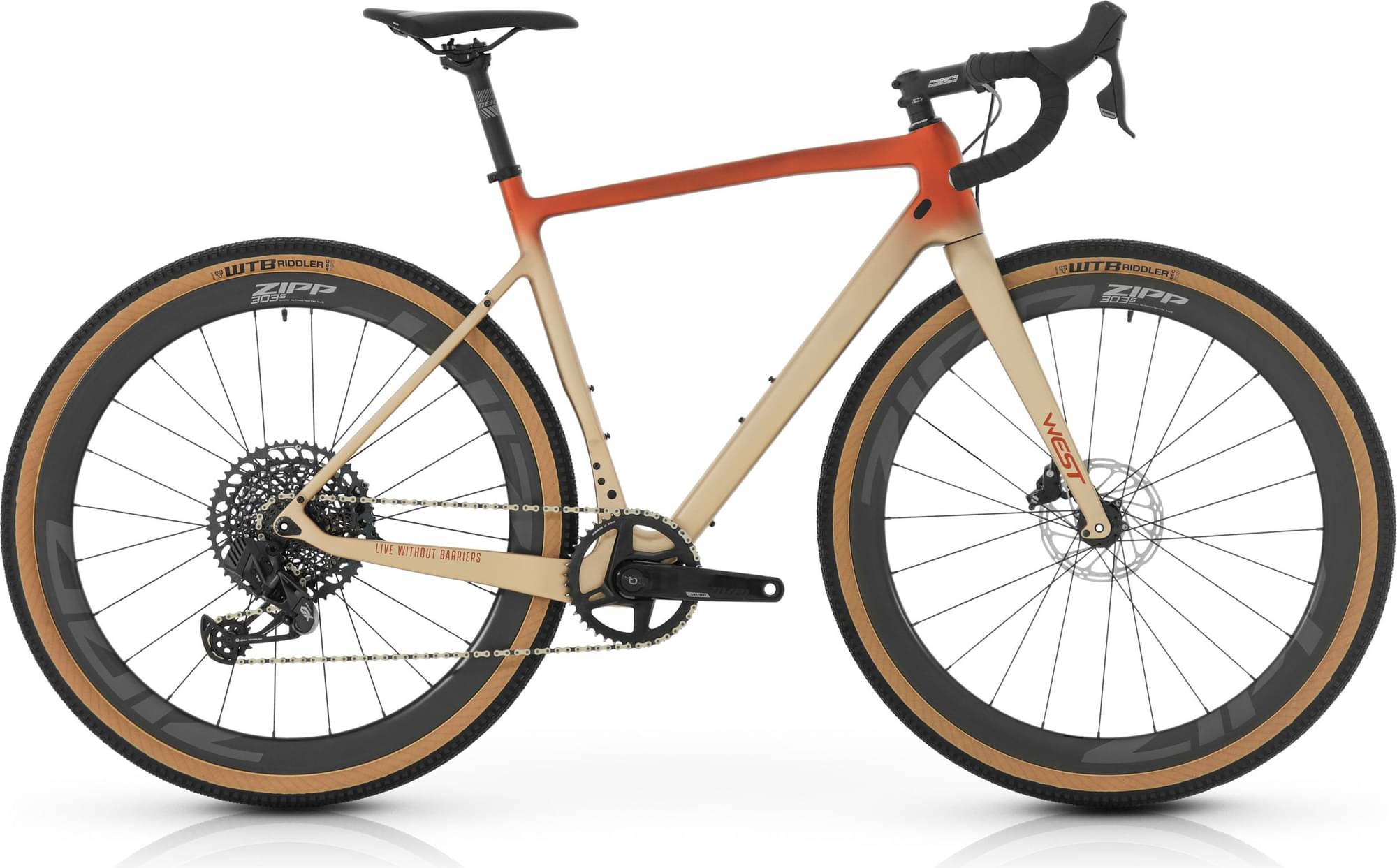

WEST AXS 03 belongs to the Megamo West model. Megamo launched 15 bikes of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
WEST AXS 03 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on WEST AXS 03 are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Megamo WEST AXS 03 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
