Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio, Sora -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
Suntour XCM 100mm travel fork with lockout
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M3000
Shift Levers
Shimano Altus 27 speed rapid fire
Cassette
Shimano CS-HG200, 9 speed, 11-34 teeth
Crank
Shimano MT100 40-30-22 teeth
Chain
KMC M99
Wheels
Front Hub
Shimano Centerlock, quick release
Rear Hub
Shimano Centerlock, quick release
Rims
MERIDA BIG.NINE Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 29er 2.2" folding
Brakes
Brakes
Shimano M315 hydraulic disc, 180mm / 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Expert CC 720mm wide 10mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.55 mm | 1.52 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 618 mm | 632 mm | 646 mm | 660 mm | 674 mm |
| Reach | 386 mm | 402 mm | 418 mm | 433 mm | 449 mm |
| Top Tube Length | 574 mm | 594 mm | 614 mm | 634 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1073 mm | 1094 mm | 1114 mm | 1135 mm | 1156 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 731 mm | 767 mm | 804 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

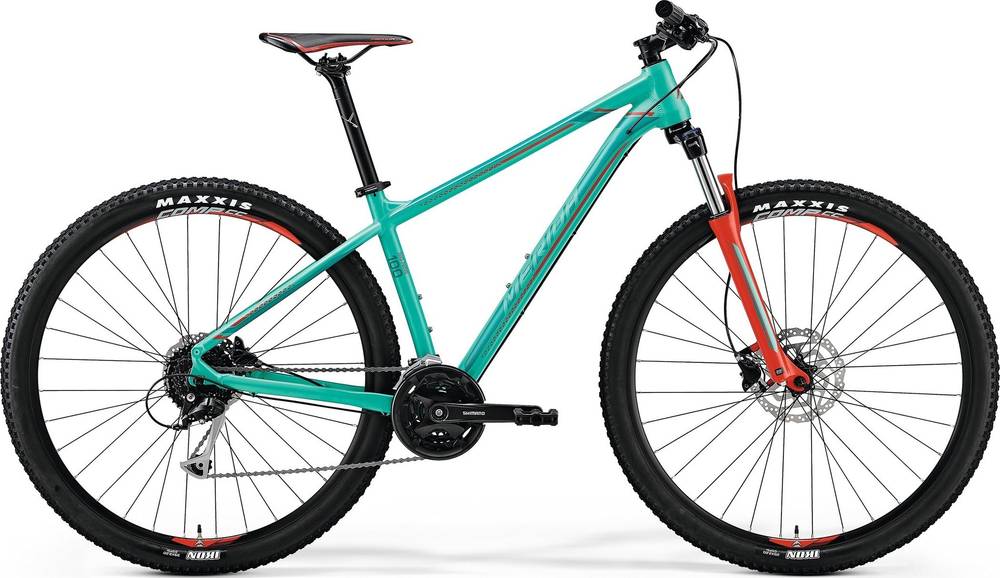

BIG.NINE 100 is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
BIG.NINE 100 weighs 13.85 kg (30.53 lbs) and is considerably heavier than the average. To sum up, it’s 11.69% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
This bike has the SunTour XCM fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida BIG.NINE 100 2018, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE 100 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
