Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE SPEED, material: aluminium, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour XCT30, Coil, 100mm suspension travel, 29x2.25" max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M310
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano ST-EF505
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL
Bottom Bracket
BSA, 73mm, threaded
Chain
Sunrace M84
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Black steel
Tires
MERIDA K1080, 29x2.2", wire
Brakes
Brakes
Shimano ST-EF505, BR-MT200 brake caliper
Disk Rotors
Shimano RT10, 160 mm
Cockpit
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Headset
FSA NO.10
Seat
Saddle
MERIDA Sport comfort
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.61 mm | 1.59 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 628 mm | 649 mm | 663 mm | 683 mm | 704 mm |
| Rake | 47 mm | 51 mm | 53 mm | 57 mm | 60 mm |
| Trail | 86 mm | 82 mm | 76 mm | 72 mm | 69 mm |
| Stack | 613 mm | 622 mm | 634 mm | 643 mm | 653 mm |
| Reach | 372 mm | 386 mm | 399 mm | 412 mm | 426 mm |
| Top Tube Length | 557 mm | 578 mm | 598 mm | 618 mm | 639 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 382 mm | 448 mm | 486 mm | 532 mm | 583 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1070 mm | 1091 mm | 1105 mm | 1125 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 697 mm | 754 mm | 788 mm | 828 mm | 868 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

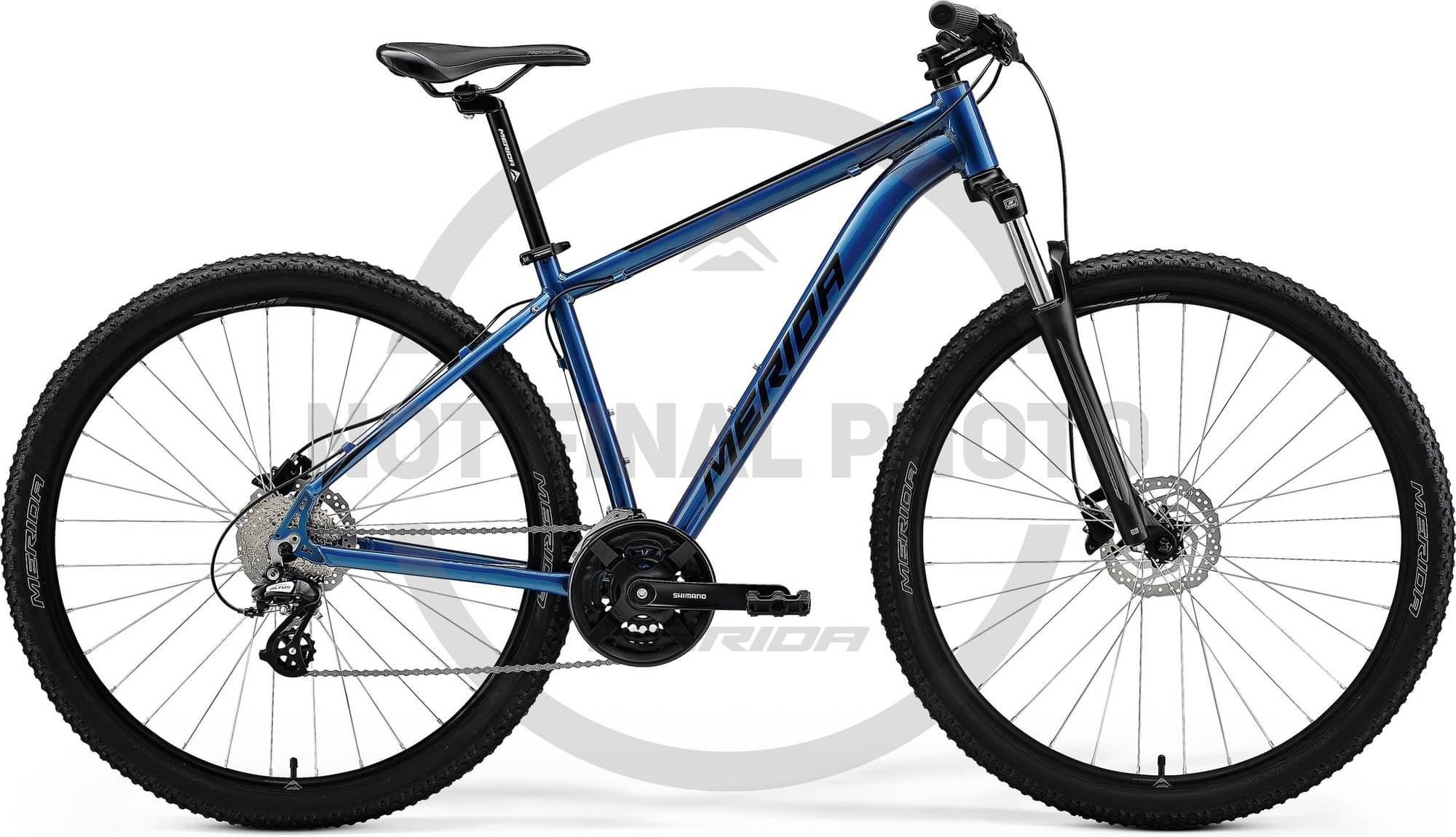

BIG.NINE 15 completes the Merida Bignine model. There are 236 bikes that carry this model name. You can easily view all of the Merida Bignine bikes models from 2022, here.
Model range prices
Merida BIG.NINE 15 2022 is the most economical model, with a starting price of 528$. Merida BIG.NINE 7000 2022 on the other hand costs 3502$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 528$. Comparing this to the average Crosscountry bike price, we see that the price is 260.8% smaller.
BIG.NINE 15 components
Fork
The BIG.NINE 15 comes factory-installed with the Suntour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the BIG.NINE 15 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.NINE 15 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
