Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS III, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, MUK 5 Hanger
Suspension Fork
Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout
Drivetrain
Rear Derailleur
Shimano RD-M360
Front Derailleur
Shimano FD-M315-TS
Shift Levers
Shimano ST-EF505
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano FC-M315-2, 36-22, 170 mm-S, 175 mm-M/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
Sunrace M84
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17mm inner width, material: aluminium
Tires
MERIDA K1080, 29x2.2", wire
Brakes
Brakes
Power DS100
Disk Rotors
Shimano RT10, 160 mm
Cockpit
Stem
MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA Sport comfort
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 657 mm | 677 mm | 698 mm |
| Rake | 46 mm | 45 mm | 46 mm |
| Trail | 87 mm | 88 mm | 87 mm |
| Stack | 624 mm | 638 mm | 652 mm |
| Reach | 394 mm | 410 mm | 425 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1086 mm | 1106 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 723 mm | 759 mm | 796 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model

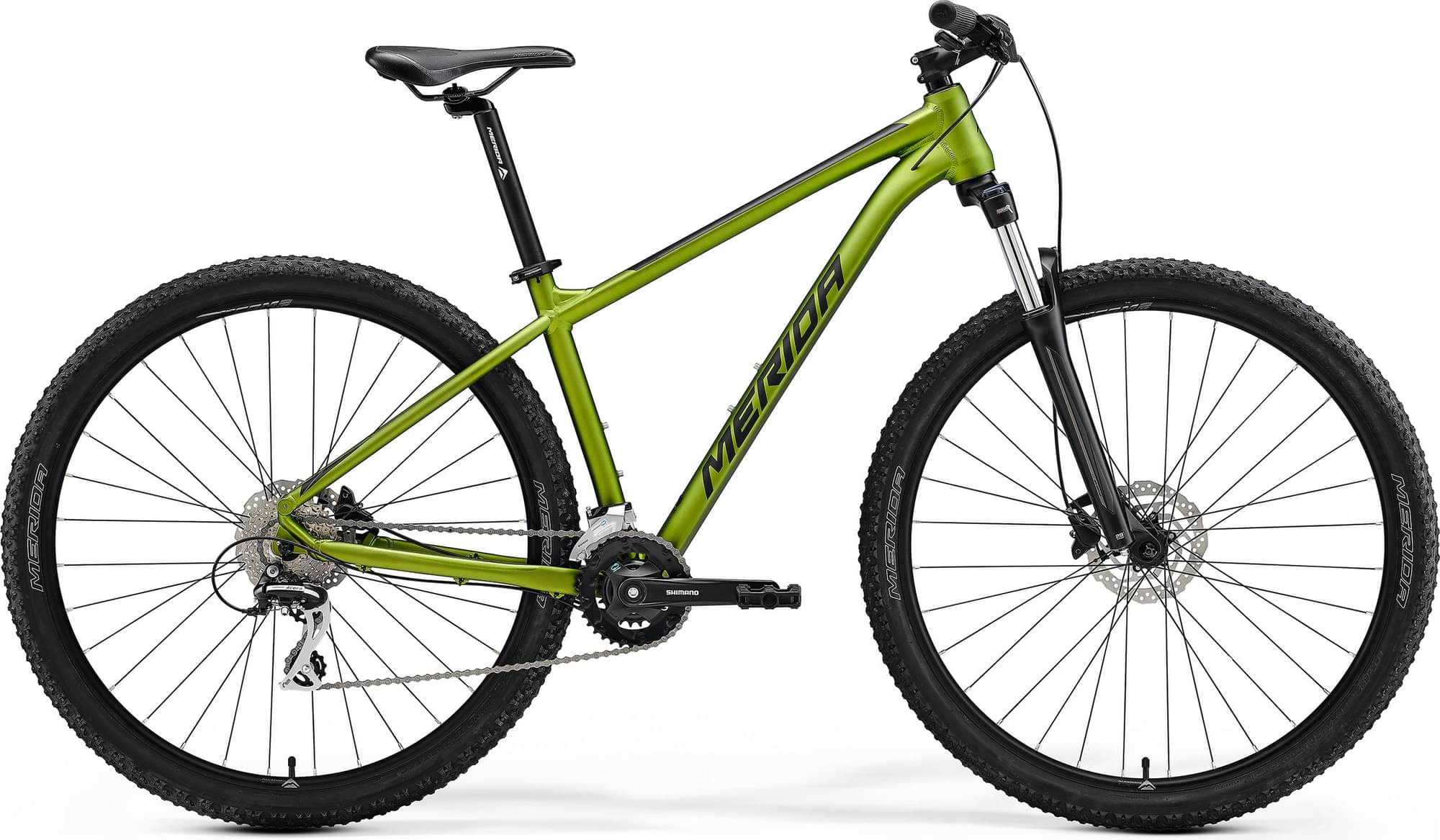

BIG NINE 20 is part of the Merida Big Nine model. Merida released 5 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Merida BIG NINE 20 2022 has a starting price of 851$. Merida BIG NINE 80 2022 on the other hand is the most expensive at 1216$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 851$. If we compare this with the average Crosscountry bike cost we notice that the price is 123.85% smaller.
Overview of components
Fork
The fork installed on this bike is the Suntour XCT model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the BIG NINE 20 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
