Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Acera, Tourney -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour XCT30 HLO, Coil, 100mm suspension travel, lockout, 29x2.25" max. wheelsize
Drivetrain
Rear Derailleur
Shimano RD-M360
Front Derailleur
Shimano FD-TY700
Shift Levers
Shimano ST-EF505
Cassette
Sunrace CSM668, 11-32 teeth, 8 speed
Crank
Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL
Bottom Bracket
FSA TH-7420ST-W, Cartridge Bearing
Chain
Sunrace M84
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA CC, 17mm inner width, material: aluminium
Spokes
Black steel
Tires
MERIDA K1080, 29x2.2", wire
Brakes
Brakes
Shimano ST-EF505, BR-MT200 brake caliper
Cockpit
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA Sport comfort
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.55 mm | 1.52 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 618 mm | 632 mm | 646 mm | 660 mm | 674 mm |
| Reach | 386 mm | 402 mm | 418 mm | 433 mm | 449 mm |
| Top Tube Length | 574 mm | 594 mm | 614 mm | 634 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1073 mm | 1094 mm | 1114 mm | 1135 mm | 1156 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 731 mm | 767 mm | 804 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

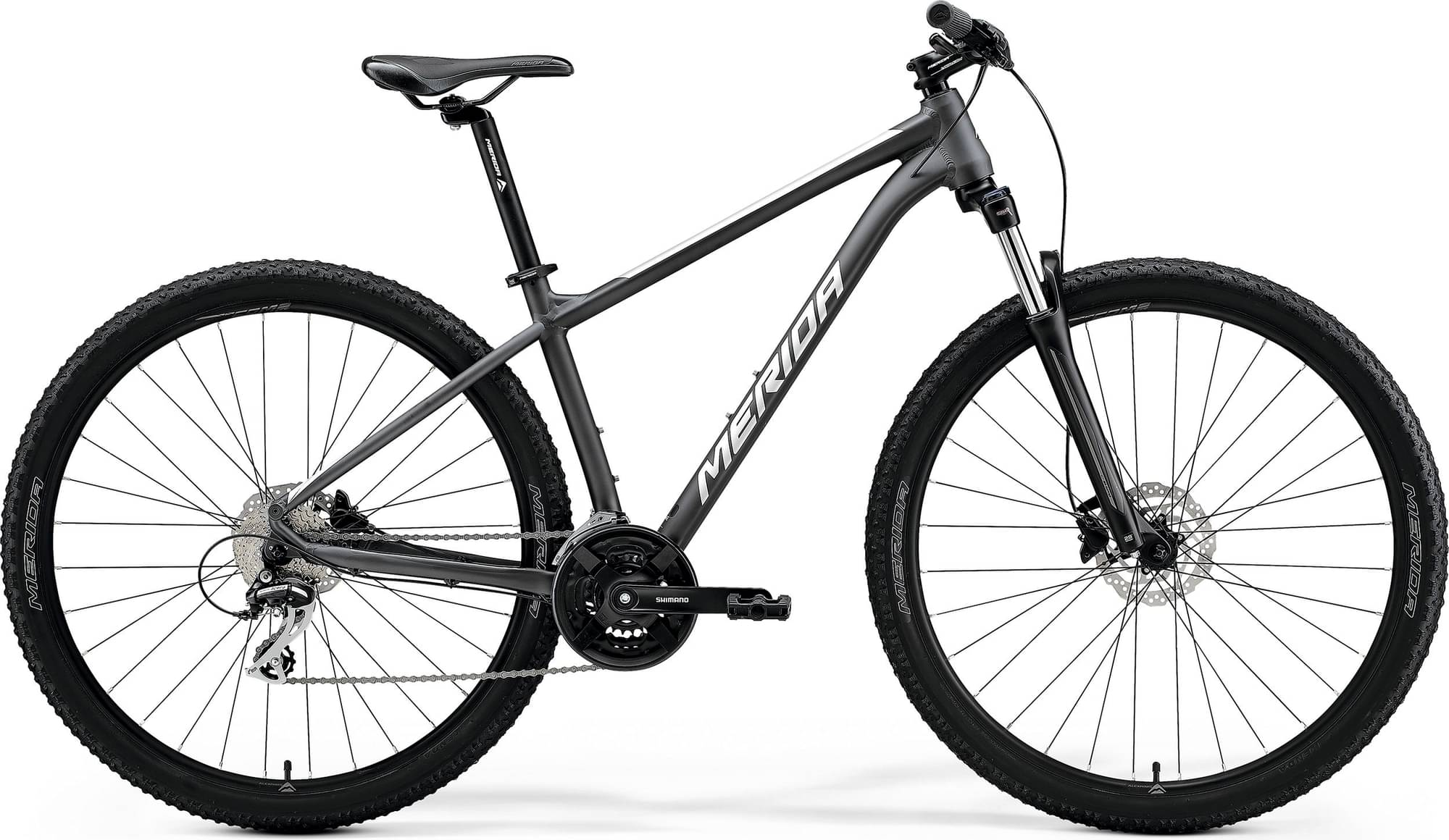

BIG.NINE 20 is part of the Merida Bignine model. 236 bikes variations carry this model name so far. You can easily view all of the Merida Bignine bikes models from 2023, here.
Model range prices
Merida BIG.NINE 15 2023 is the cheapest bike model and costs 528$. Merida BIG.NINE 7000 2023 is the most expensive one and costs 3502$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Merida BIG.NINE 20 it’s weighing 14.48 kg (31.92 lbs). At this weight, is much heavier than average. In conclusion, the average Crosscountry bike weighs 16.77% less than BIG.NINE 20.
BIG.NINE 20 components
Fork
The BIG.NINE 20 comes factory-installed with the Suntour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida BIG.NINE 20 2023, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE 20 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
