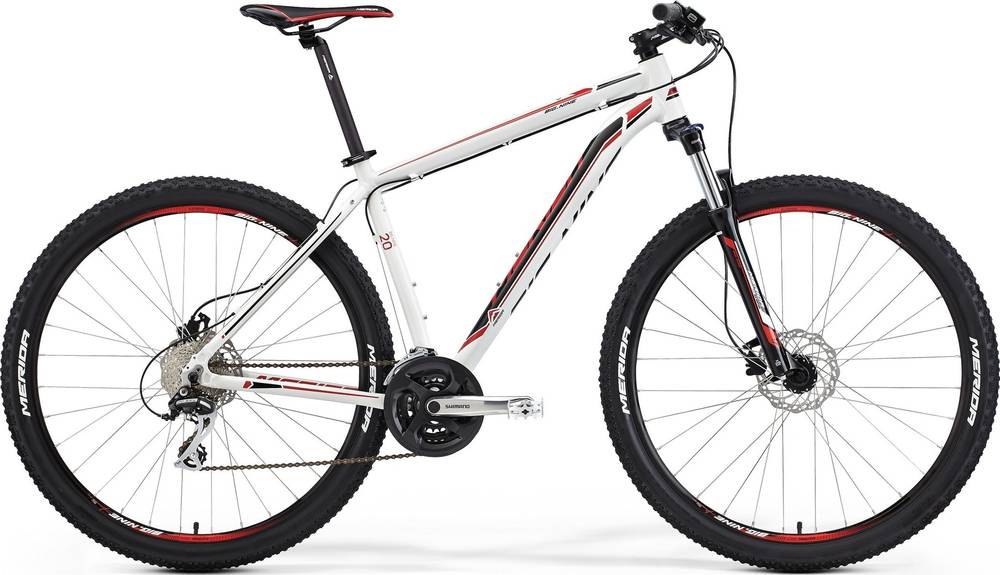

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Fork SunTour XCM HLO -
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE SPEED
Suspension Fork
SR 29 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X
Front Derailleur
Shimano M190
Shift Levers
Shimano Altus rapidfire 3 / Shimano Altus rapidfire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano M131 42-34-24 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA BIG.NINE D
Tires
MERIDA 29 2.2
Brakes
Brakes
Promax DSK hydraulic 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 680 R15
Headset
EGG steel-B
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.59 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 628 mm | 649 mm | 663 mm | 683 mm | 704 mm |
| Rake | 46 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 87 mm | 87 mm | 84 mm | 85 mm | 84 mm |
| Stack | 611 mm | 620 mm | 632 mm | 641 mm | 651 mm |
| Reach | 372 mm | 389 mm | 405 mm | 422 mm | 439 mm |
| Top Tube Length | 557 mm | 577 mm | 597 mm | 617 mm | 647 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 73 ° |
| Seat Tube Length | 380 mm | 445 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1063 mm | 1084 mm | 1098 mm | 1118 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 693 mm | 750 mm | 783 mm | 823 mm | 864 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Big.Nine 20-D is a Merida Bignine model. Merida launched 236 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Big.Nine 20-D components
Fork
The Big.Nine 20-D comes factory-installed with the SunTour XCM HLO fork. This has a travel range of mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Big.Nine 20-D are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
