Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Fork SunTour XCM HLO -
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE SPEED
Suspension Fork
SR 29 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano TY 8s 42
Shift Levers
Shimano EZ fire / Shimano EZ fire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 42-34-24 CG
Chain
Chain 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA BIG.NINE D
Spokes
stainless silver
Tires
MERIDA 29 2.2
Brakes
Brakes
Promax MTD Mechanical 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 690 R15
Headset
EGG steel-B
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA comp SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.59 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 628 mm | 649 mm | 663 mm | 683 mm | 704 mm |
| Rake | 45 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 88 mm | 87 mm | 84 mm | 85 mm | 84 mm |
| Stack | 613 mm | 622 mm | 634 mm | 643 mm | 653 mm |
| Reach | 374 mm | 391 mm | 407 mm | 424 mm | 441 mm |
| Top Tube Length | 557 mm | 578 mm | 598 mm | 618 mm | 639 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 382 mm | 448 mm | 486 mm | 532 mm | 583 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1070 mm | 1091 mm | 1105 mm | 1125 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 697 mm | 754 mm | 788 mm | 828 mm | 868 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

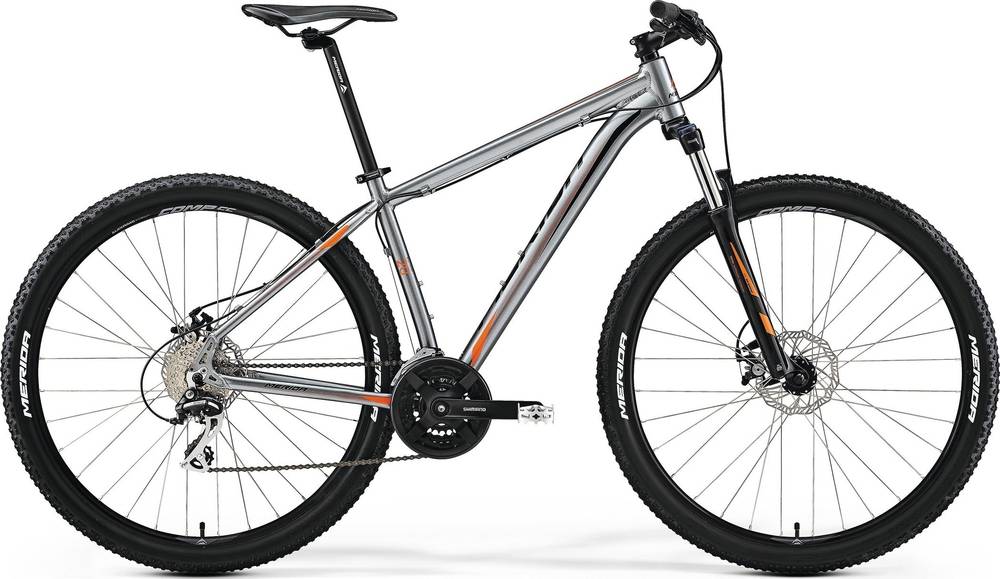

BIG.NINE 20-MD completes the Merida Bignine model. Merida launched 236 bikes of this model so far. You can easily view all of the Merida Bignine bikes models from 2017, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, BIG.NINE 20-MD has a weight of 15.5 kg (34.17 lbs). In other words, this model is 25% heavier than the average Crosscountry bike.
BIG.NINE 20-MD components
Fork
The fork installed on this bike is the SunTour XCM HLO model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the BIG.NINE 20-MD model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
