Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES, Shimano -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS IV, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Suspension Fork
SR Suntour XCR LOR, Air, 100mm suspension travel, Lockout, 46mm fork offset
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG300, 11-48 teeth, 10 speed
Crank
Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300-HM, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano MT200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA M2345
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.578 mm | 1.551 mm | 1.529 mm | 1.506 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm | 670 mm |
| Reach | 382 mm | 398 mm | 414 mm | 429 mm | 445 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1069 mm | 1090 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 679 mm | 727 mm | 763 mm | 800 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

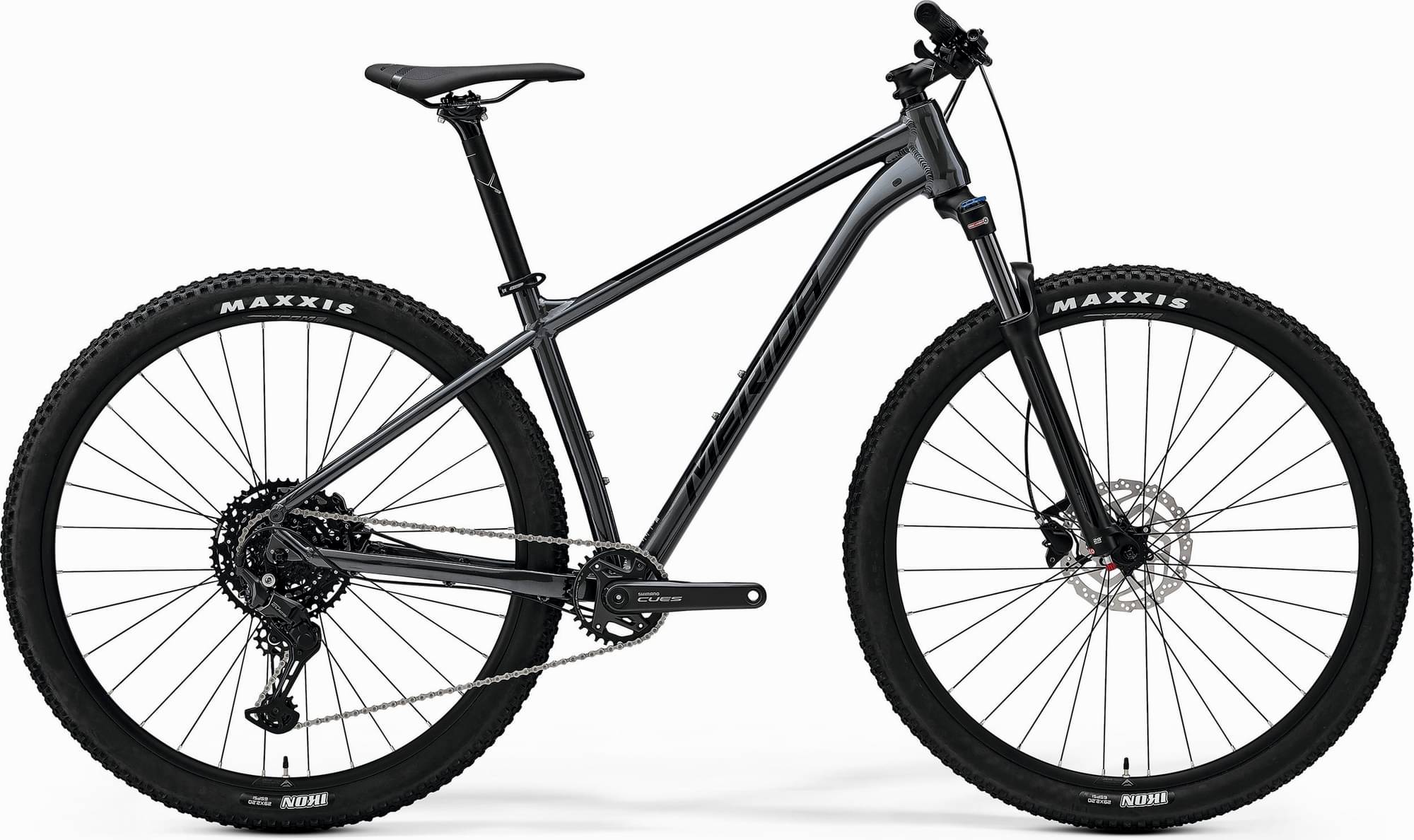

BIG.NINE 200 is a Merida Bignine model. Merida launched 246 bikes of this model so far. You can easily view all of the Merida Bignine bikes models from 2024, here.
Model range prices
Merida BIG.NINE 20 2024 is the most affordable bike of this model and has a price of 577$. On the other hand, Merida BIG.NINE XT 2024, is the most expensive and costs 2568$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2024 and its price was 834$. Comparing the average cost of a Crosscountry bike to this one, you will see that BIG.NINE 200 price is 128.42% lower.
BIG.NINE 200 components
Fork
The BIG.NINE 200 comes factory-installed with the Suntour XCR Air fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the BIG.NINE 200 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.NINE 200 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
