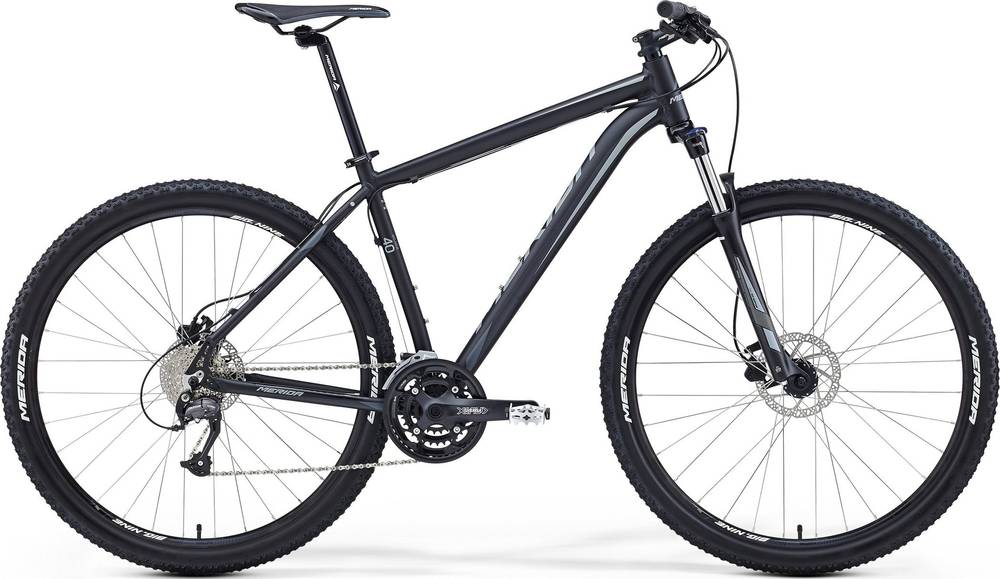

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Fork SunTour XCM HLO -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE SPEED
Suspension Fork
SR 29 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X9
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA BIG.NINE D
Spokes
stainless silver
Tires
MERIDA 29 2.2
Brakes
Brakes
Tektro Auriga hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 680 R15
Headset
FSA No.10
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.59 mm | 1.59 mm | 1.56 mm | 1.54 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 628 mm | 649 mm | 663 mm | 683 mm | 704 mm |
| Rake | 47 mm | 46 mm | 53 mm | 57 mm | 60 mm |
| Trail | 86 mm | 87 mm | 76 mm | 72 mm | 69 mm |
| Stack | 611 mm | 620 mm | 632 mm | 641 mm | 651 mm |
| Reach | 370 mm | 389 mm | 397 mm | 410 mm | 424 mm |
| Top Tube Length | 557 mm | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 380 mm | 445 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1063 mm | 1084 mm | 1098 mm | 1118 mm | 1139 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 695 mm | 752 mm | 786 mm | 826 mm | 866 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
BIG.NINE 40-D is part of the Merida Bignine model. Merida launched 236 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 14.4 kg (31.75 lbs), the BIG.NINE 40-D model is much heavier than average. In conclusion, the average Crosscountry bike weighs 16.13% less than BIG.NINE 40-D.
Overview of components
Fork
Merida BIG.NINE 40-D 2016 bike is equipped with the SunTour XCM HLO fork, and has mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on BIG.NINE 40-D are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
