Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Fork SunTour XCM HLO -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE SPEED
Suspension Fork
SR 29 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG
Chain
Chain 9S
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA BIG.NINE D
Spokes
stainless silver
Tires
MERIDA 29 2.2
Brakes
Brakes
Tektro MA hydraulic 160
Brake Levers
Tektro M285
Cockpit
Handlebar
MERIDA comp OS 690 R15
Headset
EGG steel-B
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.59 mm | 1.56 mm | 1.52 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 628 mm | 649 mm | 663 mm | 683 mm | 704 mm |
| Rake | 45 mm | 46 mm | 46 mm | 45 mm | 46 mm |
| Trail | 88 mm | 87 mm | 84 mm | 85 mm | 84 mm |
| Stack | 613 mm | 622 mm | 634 mm | 643 mm | 653 mm |
| Reach | 374 mm | 391 mm | 407 mm | 424 mm | 441 mm |
| Top Tube Length | 557 mm | 578 mm | 598 mm | 618 mm | 639 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 382 mm | 448 mm | 486 mm | 532 mm | 583 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1070 mm | 1091 mm | 1105 mm | 1125 mm | 1146 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 697 mm | 754 mm | 788 mm | 828 mm | 868 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

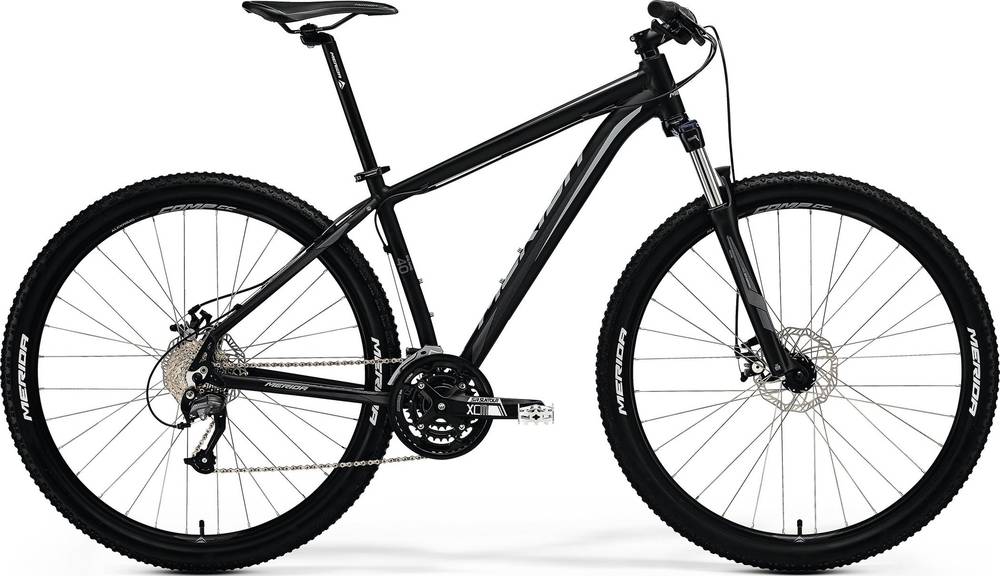

BIG.NINE 40-D is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. You can easily view all of the Merida Bignine bikes models from 2017, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
BIG.NINE 40-D weighs 15.6 kg (34.39 lbs) and is much heavier than the average. In other words, this model is 25.81% heavier than the average Crosscountry bike.
Overview of components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When it comes to wheels, the BIG.NINE 40-D bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida BIG.NINE 40-D has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
