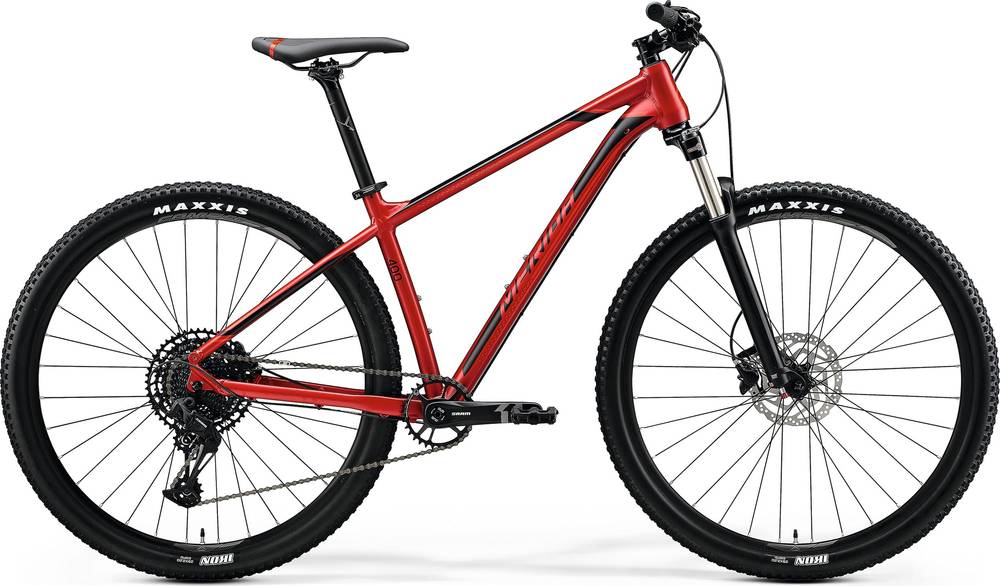

Merida BIG.NINE 400 2020
2020 Mountain
Estimate price |
1,204$
Weight | 12.68 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCR 32 Air
-
Groupset SX Eagle, X1 -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
Suntour XCR32 RL-R, Air, 100mm suspension travel, Tapered, Remote lockout, 46mm fork offset
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle, 11-50 teeth, 12 speed
Crank
SRAM X1 1000 Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BB DUB BSA MTB73
Chain
SRAM SX Eagle
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon
Brakes
Brakes
Shimano MT-200
Disk Rotors
Shimano RT10
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Headset
MERIDA M4455
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 657 mm | 677 mm | 698 mm |
| Rake | 46 mm | 45 mm | 46 mm |
| Trail | 87 mm | 88 mm | 87 mm |
| Stack | 624 mm | 638 mm | 652 mm |
| Reach | 394 mm | 410 mm | 425 mm |
| Top Tube Length | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1086 mm | 1106 mm | 1127 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 723 mm | 759 mm | 796 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
BIG.NINE 400 completes the Merida Bignine model. 236 bikes variations carry this model name so far. You can easily view all of the Merida Bignine bikes models from 2020, here.
Model range prices
Merida BIG.NINE 15-D 2020 is the most economical model, with a starting price of 523$. Merida BIG.NINE LIMITED-AL 2020 on the other hand costs 1338$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1095$. Doing a quick comparison, we notice that BIG.NINE 400 price is 73.97% lower than the average cost of a Crosscountry bike.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida BIG.NINE 400 it’s weighing 12.68 kg (27.95 lbs). At this weight, is slightly heavier than average. In conclusion, the average Crosscountry bike weighs 2.26% less than BIG.NINE 400.
Overview of components
Fork
The fork installed on this bike is the SunTour XCR 32 Air model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida BIG.NINE 400 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE 400 is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, finding one for you shouldn’t be a problem.
