Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset CUES, Shimano -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding
Suspension Fork
Manitou Markhor Comp, Air, 100 mm suspension travel, Tapered, Lockout, 51 mm fork offset
Drivetrain
Rear Derailleur
Shimano CUES U6000, GS
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG400, 11-50 teeth, 11 speed
Crank
Shimano CUES U6000, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano M4100, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise
Headset
MERIDA M4455
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.578 mm | 1.551 mm | 1.529 mm | 1.506 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm | 670 mm |
| Reach | 382 mm | 398 mm | 414 mm | 429 mm | 445 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1069 mm | 1090 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 679 mm | 727 mm | 763 mm | 800 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

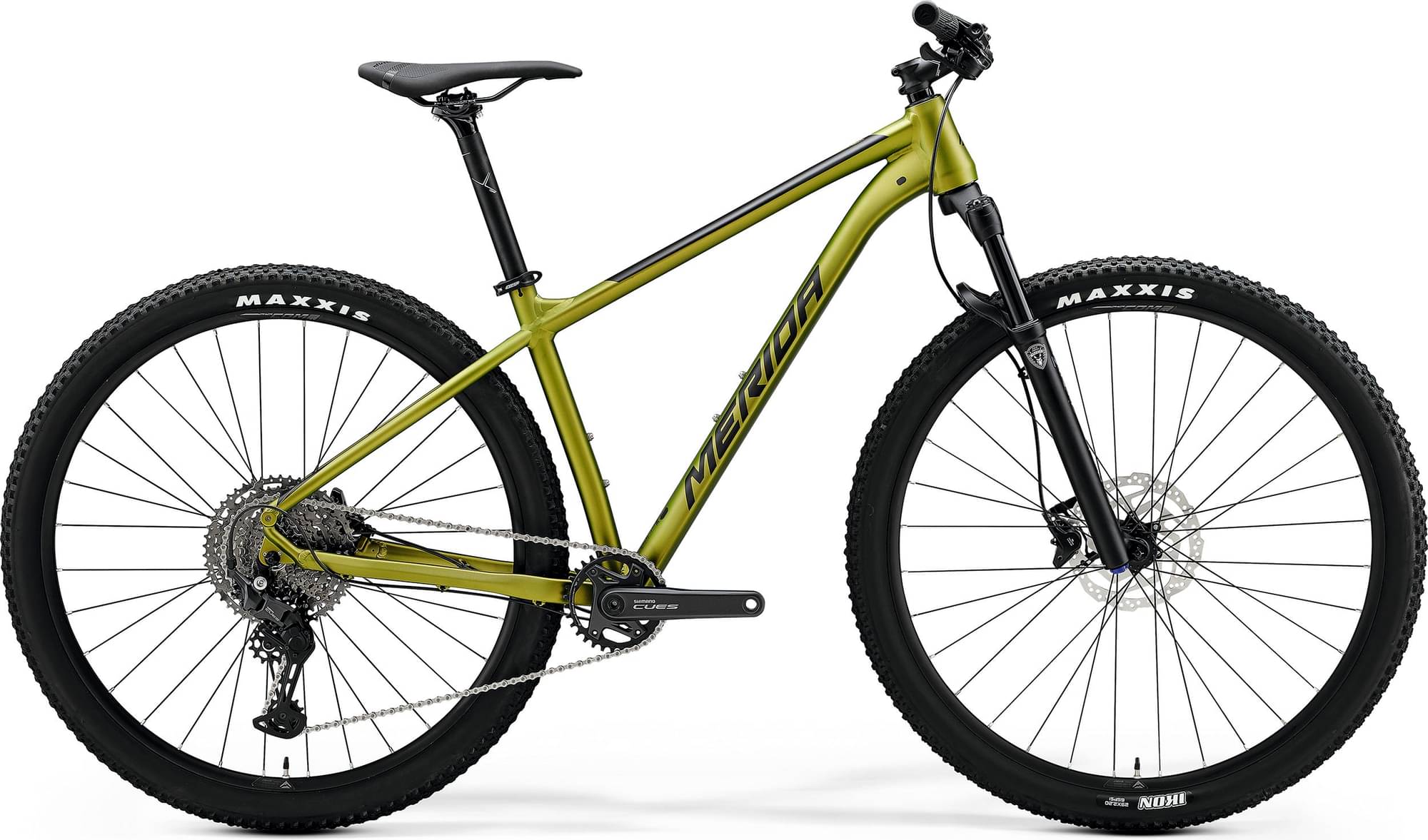

BIG.NINE 400 is a Merida Bignine model. Merida launched 246 bikes of this model so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Merida BIG.NINE 20 2024 is the most affordable bike of this model and has a price of 577$. On the other hand, Merida BIG.NINE XT 2024, is the most expensive and costs 2568$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
This bike has the Manitou Markhor fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on BIG.NINE 400 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE 400 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
