Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big.Nine TFS-D
Suspension Fork
Rock Shox XC30TK29 100
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore H35 triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG-10 11-36
Crank
Shimano M522 Octa 42-32-24
Bottom Bracket
Shimano Octalink
Chain
KMC X10 10s
Wheels
Front Hub
Shimano M435 Cen
Rear Hub
Shimano M435 Cen
Rims
MERIDA Big.Nine Comp D
Spokes
black stainless
Tires
MERIDA Race Lite 29er 2.1 fold
Brakes
Brakes
Shimano M445 180 mm Cen / Shimano M445 160 mm Cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA Comp OS 680 Flat
Headset
EGG Steel
Seat
Saddle
MERIDA Pro SI
Seatpost
Merida Comp SB12 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.45 mm | 1.41 mm | 1.45 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Stack | 620 mm | 620 mm | 622 mm | 632 mm | 651 mm |
| Reach | 389 mm | 409 mm | 428 mm | 447 mm | 449 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 639 mm | 647 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 380 mm | 445 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

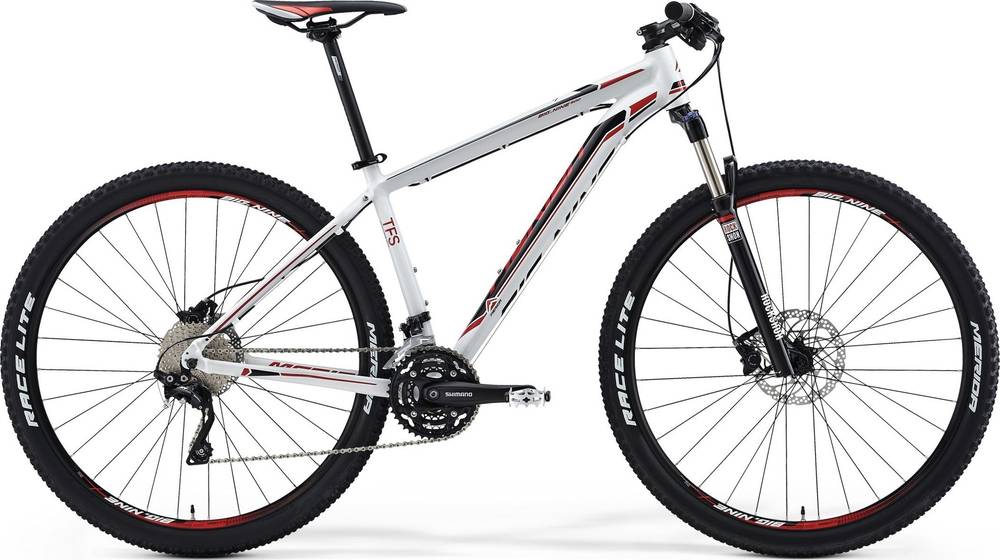

Big.Nine 500 is a Merida Bignine model. Merida released 236 bikes variations of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 12.8 kg (28.22 lbs), Merida bike is slightly heavier than average. In short, the average Crosscountry bike weight is 3.23% lower than this one.
Overview of components
Wheels
When leaving the production line, the Big.Nine 500 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
