Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
Rock Shox FS 30STK29 SA 100
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano HG50-10 11-36
Crank
Shimano M523 octa 40-30-22 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Formula Centerlock / Formula Centerlock cassette
Rear Hub
Formula Centerlock / Formula Centerlock cassette
Rims
MERIDA BIG.NINE comp D
Spokes
Black stainless
Tires
Maxxis Ikon 29er 2.2 fold
Brakes
Brakes
Shimano M355 180 cen / Shimano M355 160 cen
Cockpit
Handlebar
MERIDA pro OS 680 R12
Headset
FSA No.572/62BP-1
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA comp SB12 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.6 mm | 1.57 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 625 mm | 645 mm | 660 mm | 680 mm | 701 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm |
| Trail | 87 mm | 88 mm | 84 mm | 85 mm | 84 mm |
| Stack | 612 mm | 621 mm | 633 mm | 642 mm | 652 mm |
| Reach | 370 mm | 387 mm | 403 mm | 420 mm | 437 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 446 mm | 484 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1061 mm | 1081 mm | 1096 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 695 mm | 746 mm | 781 mm | 819 mm | 861 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |

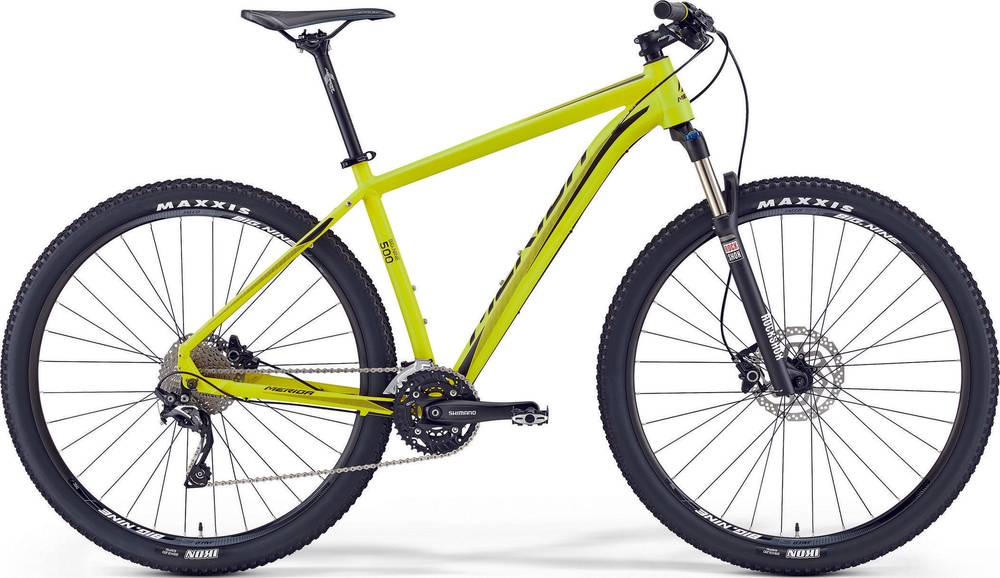

Model Overview
BIG.NINE 500 is a Merida Bignine model. Merida launched 236 bikes of this model so far. Take a sneak peek at all Merida Bignine bikes models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 12.7 kg (28 lbs), Merida bike is slightly heavier than average. In conclusion, the average Crosscountry bike weighs 2.42% less than BIG.NINE 500.
BIG.NINE 500 components
Wheels
When leaving the production line, the BIG.NINE 500 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida BIG.NINE 500 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
