Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
Rock Shox FS 30STK29 SA 100
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Front Derailleur
Shimano Deore double
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano M627 36-22
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA BIG.NINE comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 29er 2.2 fold
Brakes
Brakes
Shimano M315 180 cen / Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 700 R12
Headset
BC OV Hset
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA comp SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.61 mm | 1.59 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 625 mm | 645 mm | 660 mm | 680 mm | 701 mm |
| Rake | 45 mm | 47 mm | 50 mm | 54 mm | 57 mm |
| Trail | 88 mm | 86 mm | 80 mm | 75 mm | 72 mm |
| Stack | 612 mm | 621 mm | 633 mm | 642 mm | 652 mm |
| Reach | 371 mm | 385 mm | 398 mm | 411 mm | 425 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 446 mm | 484 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1061 mm | 1081 mm | 1096 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 696 mm | 747 mm | 782 mm | 820 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

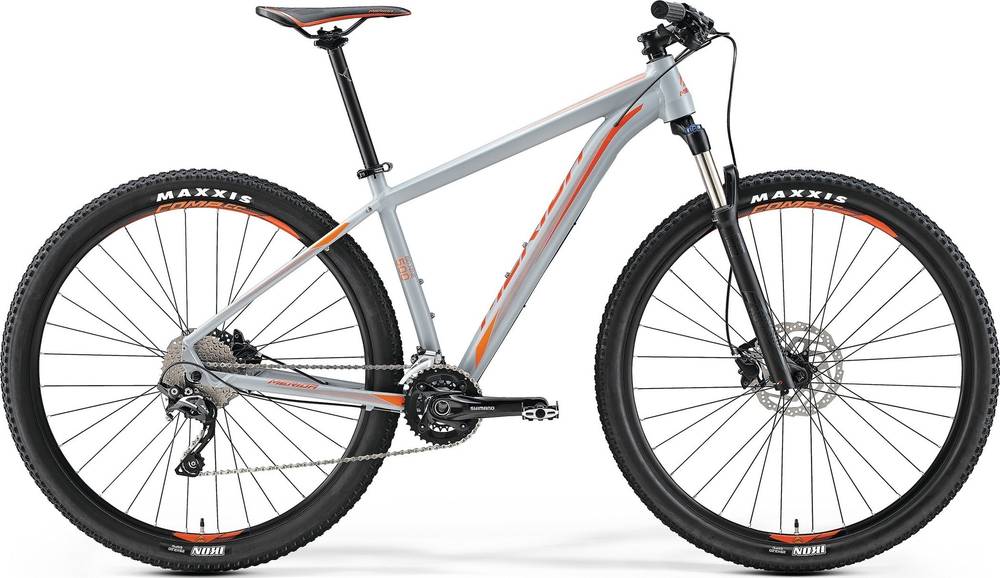

BIG.NINE 500 is a Merida Bignine model. Merida launched 236 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
BIG.NINE 500 weighs 13.17 kg (29.03 lbs) and is a bit heavier than the average. In short, the average Crosscountry bike weight is 6.21% lower than this one.
Overview of components
Wheels
When leaving the production line, the BIG.NINE 500 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida BIG.NINE 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
