Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset CUES, Shimano -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS IV, material: aluminum, 29" wheelsize, 135x9 mm axle standard, BSA bottom bracket standard, Smooth welding
Suspension Fork
Manitou Markhor Comp, Air, 100 mm suspension travel, Tapered, Lockout, 51 mm fork offset
Drivetrain
Rear Derailleur
Shimano CUES U6020, SGS
Front Derailleur
Shimano CUES U6000
Shift Levers
Shimano CUES U6000
Cassette
Shimano LG400, 11-45 teeth, 11 speed
Crank
Shimano CUES U6002, 36-22 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano LG500
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano M4100, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720 mm width, 10 mm rise
Headset
MERIDA M4455
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 0 mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.578 mm | 1.551 mm | 1.529 mm | 1.506 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 614 mm | 628 mm | 642 mm | 656 mm | 670 mm |
| Reach | 382 mm | 398 mm | 414 mm | 429 mm | 445 mm |
| Top Tube Length | 570 mm | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1069 mm | 1090 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 679 mm | 727 mm | 763 mm | 800 mm | 843 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

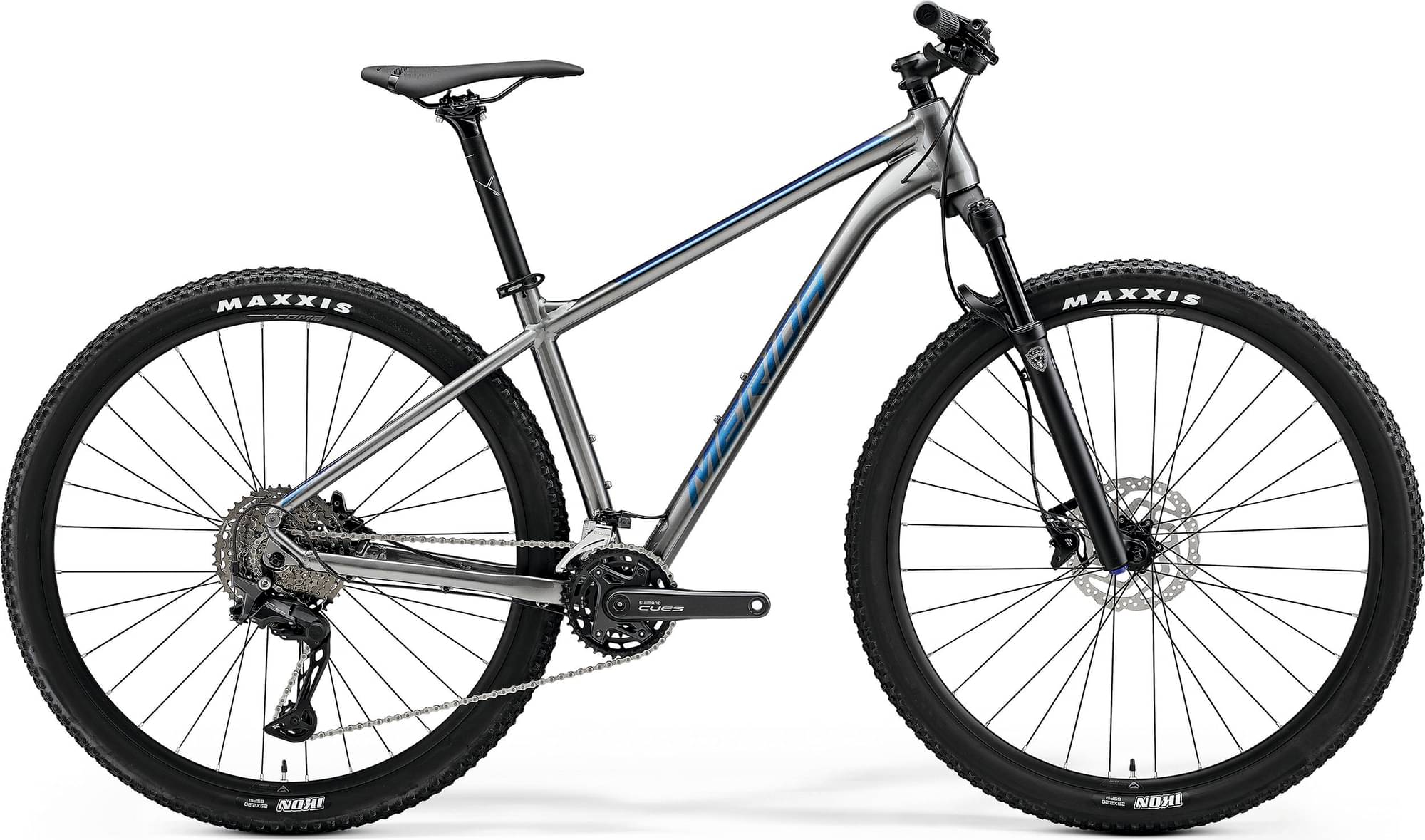

BIG.NINE 500 is a Merida Bignine model. Merida released 246 bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Model range prices
Merida BIG.NINE 20 2024 is the cheapest bike model and costs 577$. Merida BIG.NINE XT 2024 is the most expensive one and costs 2568$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
BIG.NINE 500 components
Fork
The BIG.NINE 500 comes factory-installed with the Manitou Markhor fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Merida BIG.NINE 500 2024, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
