Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF3
Suspension Fork
Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano SLX
Shift Levers
Shimano SLX
Cassette
Shimano M7000, 11-42 teeth, 11 speed
Crank
Shimano XT, 34-24 teeth
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 110x15mm width, 32 spoke holes, Centerlock / Shimano MT400-B, 148x12mm width, 32 spoke holes, Centerlock
Rims
MERIDA Expert CC, 22.8mm inner width
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon, 29x2.2", fold
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert CC, 31.8mm diameter, -6° stem angle
Handlebar
MERIDA Expert CC, 720mm width, flat
Grips
Merida Team EC
Headset
FSA NO.55E, 2191018117
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA Expert CC, 30.9mm diameter, 0mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.44 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 676 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 614 mm | 619 mm | 628 mm | 642 mm | 661 mm |
| Reach | 399 mm | 418 mm | 435 mm | 451 mm | 465 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 642 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1077 mm | 1098 mm | 1118 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 678 mm | 741 mm | 775 mm | 816 mm | 839 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

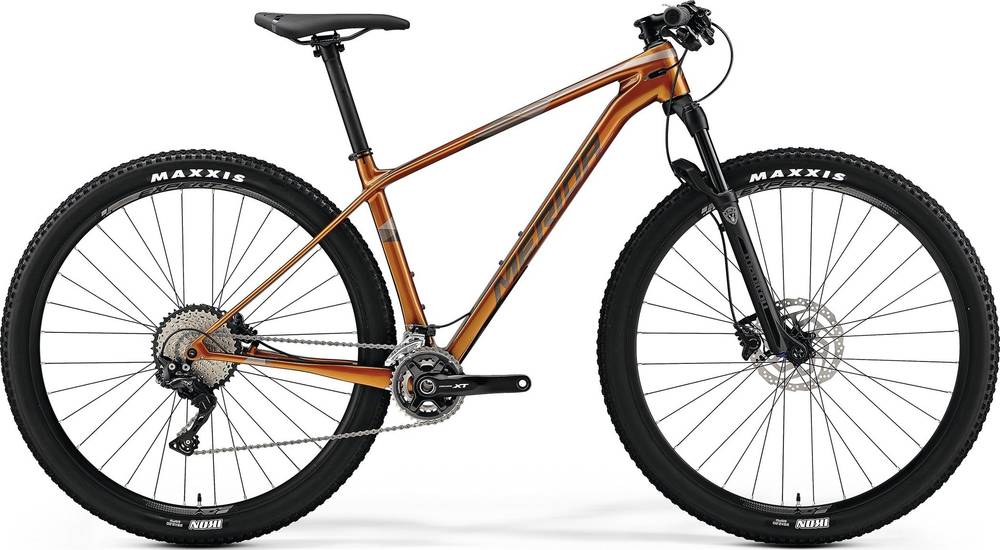

BIG.NINE 5000 is a Merida Bignine model. There are 236 bikes that carry this model name. Take a sneak peek at all Merida Bignine bikes models from 2019, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
BIG.NINE 5000 weighs 11.46 kg (25.26 lbs) and is a bit lighter than the average. To sum up, it’s 8.2% lighter than the average weight of Crosscountry bikes.
Overview of components
Fork
Merida BIG.NINE 5000 2019 bike is equipped with the Manitou Markhor fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Merida BIG.NINE 5000 2019, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE 5000 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
