Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
Manitou Marvel comp 29 100 15 taper
Drivetrain
Rear Derailleur
SRAM NX 11
Shift Levers
SRAM NX 11
Cassette
SRAM PG-1130 11-42
Crank
SRAM NX XSYNC 28 STEEL
Chain
KMC X11-1
Wheels
Front Hub
FoBearing disc 15 / Bearing Disc cassette
Rear Hub
FoBearing disc 15 / Bearing Disc cassette
Rims
MERIDA BIG.NINE comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 29er 2.2 fold
Brakes
Brakes
Tektro Gimini hydraulic 180 / Tektro Gimini hydraulic 160
Brake Levers
Tektro Gimini
Cockpit
Handlebar
MERIDA Expert OS 720 flat
Headset
Big Conoid Semi
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.61 mm | 1.59 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 625 mm | 645 mm | 660 mm | 680 mm | 701 mm |
| Rake | 45 mm | 47 mm | 50 mm | 54 mm | 57 mm |
| Trail | 88 mm | 86 mm | 80 mm | 75 mm | 72 mm |
| Stack | 612 mm | 621 mm | 633 mm | 642 mm | 652 mm |
| Reach | 371 mm | 385 mm | 398 mm | 411 mm | 425 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 446 mm | 484 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1061 mm | 1081 mm | 1096 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 696 mm | 747 mm | 782 mm | 820 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

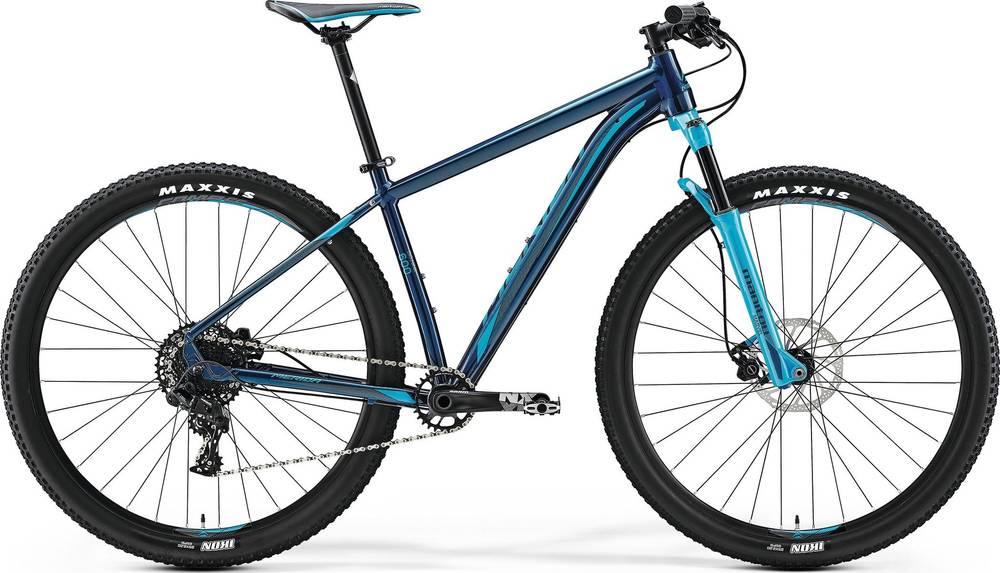

BIG.NINE 600 is a Merida Bignine model. Merida launched 236 bikes of this model so far. Take a sneak peek at all Merida Bignine bikes models from 2017, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 12.21 kg (26.92 lbs), the BIG.NINE 600 model is slightly lighter than average. In short, the average Crosscountry bike weight is 1.56% higher than this one.
BIG.NINE 600 components
Fork
The BIG.NINE 600 comes factory-installed with the Manitou fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the BIG.NINE 600 bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.NINE 600 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
