Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset SRAM, X5 -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big.Nine Speed
Suspension Fork
SR Suntour 29 XCM HLO 100
Drivetrain
Rear Derailleur
SRAM S500
Front Derailleur
SRAM X5
Shift Levers
SRAM Trigger
Cassette
SunRace CS-M9 11-32
Crank
SR Suntour XCM 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z7 8s
Wheels
Front Hub
Disc-F Alloy / Alloy Disc QR
Rear Hub
Disc-F Alloy / Alloy Disc QR
Rims
MERIDA Big.Nine D
Spokes
stainless silver
Tires
MERIDA 29er 2.2
Brakes
Brakes
ProMax DSK Hydraulic 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Comp OS 680 Flat
Headset
EGG Steel-B
Seat
Saddle
MERIDA Pro SI-E
Seatpost
Merida Speed 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.52 mm | 1.45 mm | 1.41 mm | 1.45 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Stack | 620 mm | 620 mm | 622 mm | 632 mm | 651 mm |
| Reach | 389 mm | 409 mm | 428 mm | 447 mm | 449 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 639 mm | 647 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 380 mm | 445 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 110 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

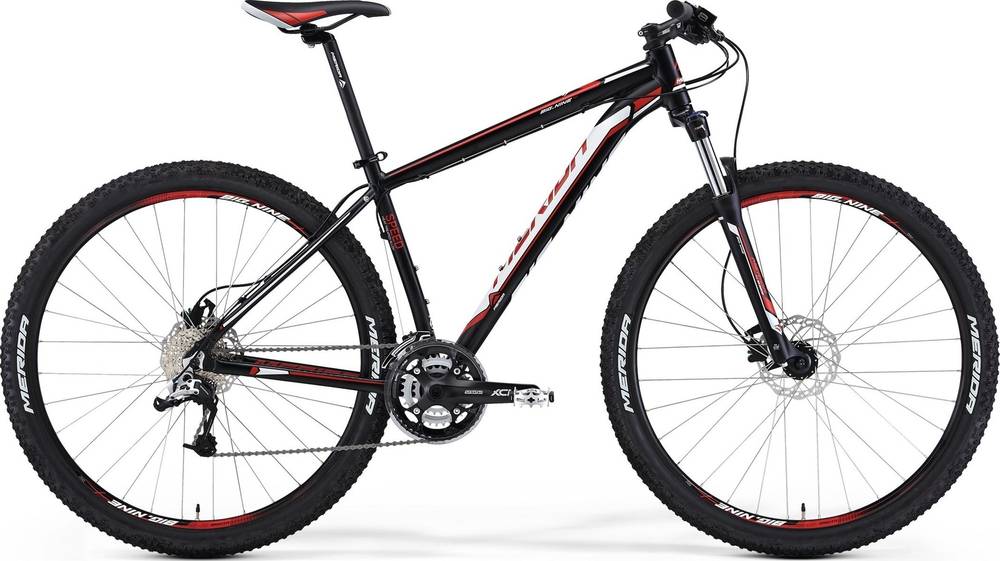

Big.Nine 70 is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much heavier than average, Big.Nine 70 has a weight of 14.67 kg (32.34 lbs). In conclusion, the average Crosscountry bike weighs 18.31% less than Big.Nine 70.
Big.Nine 70 components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The Big.Nine 70 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Big.Nine 70 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
