Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE LITE, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset
Drivetrain
Rear Derailleur
Shimano XT M8120 Shadow+
Front Derailleur
Shimano XT
Shift Levers
Shimano XT
Cassette
Shimano M7100, 10-45 teeth, 12 speed
Crank
Shimano XT, 36-26 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
Shimano BB71-41A pressfit
Chain
Shimano SLX
Wheels
Front Hub
Shimano SLX, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano SLX, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon, 29x2.2", fold
Brakes
Brakes
Shimano XT, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Headset
MERIDA M2331
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.43 mm | 1.41 mm | 1.41 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 675 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 88 mm | 87 mm | 87 mm | 87 mm |
| Stack | 613 mm | 618 mm | 627 mm | 641 mm | 660 mm |
| Reach | 402 mm | 421 mm | 438 mm | 454 mm | 468 mm |
| Top Tube Length | 584 mm | 604 mm | 624 mm | 644 mm | 664 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 382 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1079 mm | 1099 mm | 1120 mm | 1141 mm | 1162 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 687 mm | 739 mm | 770 mm | 815 mm | 858 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

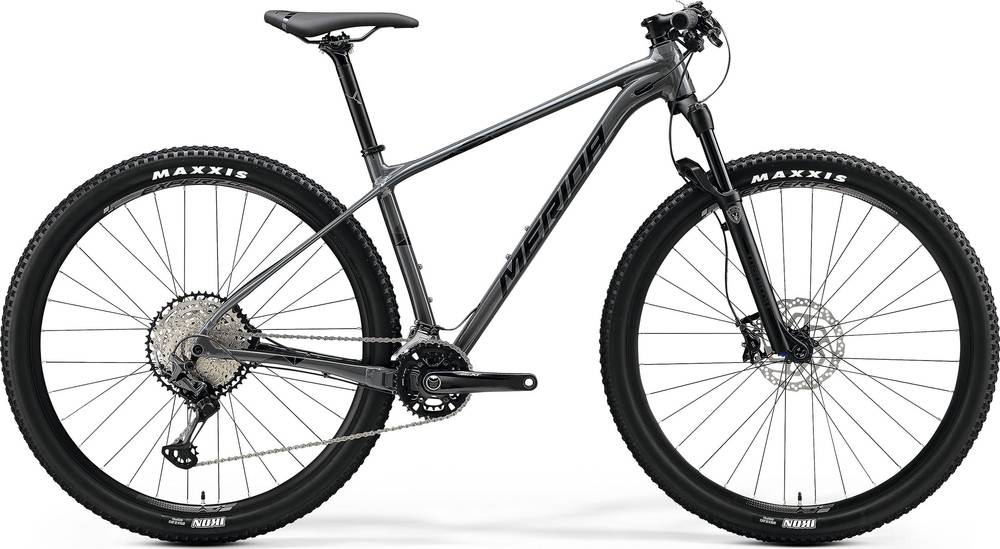

BIG.NINE 700 is a Merida Bignine model. 236 bikes variations carry this model name so far. You can easily view all of the Merida Bignine bikes models from 2020, here.
Model range prices
The most economical model, the Merida BIG.NINE 15-D 2020 has a starting price of 523$. Merida BIG.NINE LIMITED-AL 2020 on the other hand is the most expensive at 1338$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida BIG.NINE 700 it’s weighing 11.94 kg (26.32 lbs). At this weight, is slightly lighter than average. In other words, this model is 3.85% lighter than the average Crosscountry bike.
BIG.NINE 700 components
Fork
The fork installed on this bike is the Manitou Markhor model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The BIG.NINE 700 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE 700 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
