Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork Fox Performance Float 32 -
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
FOX 32 FLOAT Performance 29"
Drivetrain
Rear Derailleur
Shimano SLX SGS Shadow+
Front Derailleur
Shimano Deore double
Shift Levers
Shimano SLX ispec
Cassette
Shimano HG50-10 11-36
Crank
Shimano SLX 36-22 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rear Hub
Shimano Deore 15 cen / Shimano Deore-12 cen
Rims
DT Swiss 466D-29
Spokes
Black stainless
Tires
Continental X-King 29 2.2 fold
Brakes
Brakes
Shimano M615 180 cen / Shimano M615 160 cen
Cockpit
Handlebar
MERIDA pro OS 700 Flat
Headset
FSA No.55 E
Seat
Saddle
Prologo Kappa 3
Seatpost
MERIDA pro H SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.6 mm | 1.57 mm | 1.53 mm | 1.49 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 625 mm | 645 mm | 660 mm | 680 mm | 701 mm |
| Rake | 46 mm | 45 mm | 46 mm | 45 mm | 46 mm |
| Trail | 87 mm | 88 mm | 84 mm | 85 mm | 84 mm |
| Stack | 612 mm | 621 mm | 633 mm | 642 mm | 652 mm |
| Reach | 370 mm | 387 mm | 403 mm | 420 mm | 437 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 381 mm | 446 mm | 484 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1061 mm | 1081 mm | 1096 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 695 mm | 746 mm | 781 mm | 819 mm | 861 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

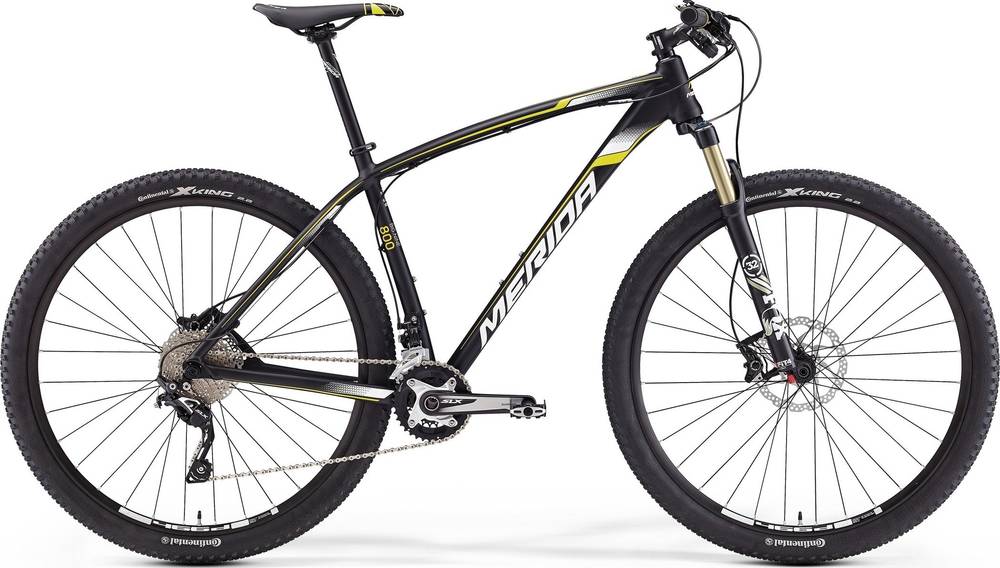

BIG.NINE 800 is a Merida Bignine model. Merida launched 236 bikes of this model so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida BIG.NINE 800 it’s weighing 12.3 kg (27.12 lbs). At this weight, is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 0.81% more than BIG.NINE 800.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the BIG.NINE 800 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE 800 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
