Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Fork Fox Performance Float 32 -
Groupset SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE LITE
Suspension Fork
FOX Performance 32 FLOAT SC 29"
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Front Derailleur
Shimano SLX direct
Shift Levers
Shimano SLX-i
Cassette
Shimano M7000-11 11-42
Crank
Shimano SLX 36-26 boost PF
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost
Rear Hub
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost
Rims
MERIDA Expert CC
Spokes
Double Butted Black stainless
Tires
Continental X-King 29 2.2 fold
Brakes
Brakes
Shimano SLX 180 cen / Shimano SLX 160 cen
Brake Levers
Shimano SLX
Cockpit
Handlebar
MERIDA Expert OS 720 flat
Headset
Big Conoid A-bearing
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB0 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.47 mm | 1.43 mm | 1.41 mm | 1.41 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 675 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 45 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 88 mm | 87 mm | 87 mm | 87 mm |
| Stack | 613 mm | 618 mm | 627 mm | 641 mm | 660 mm |
| Reach | 402 mm | 421 mm | 438 mm | 454 mm | 468 mm |
| Top Tube Length | 584 mm | 604 mm | 624 mm | 644 mm | 664 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 382 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1079 mm | 1099 mm | 1120 mm | 1141 mm | 1162 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 687 mm | 739 mm | 770 mm | 815 mm | 858 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

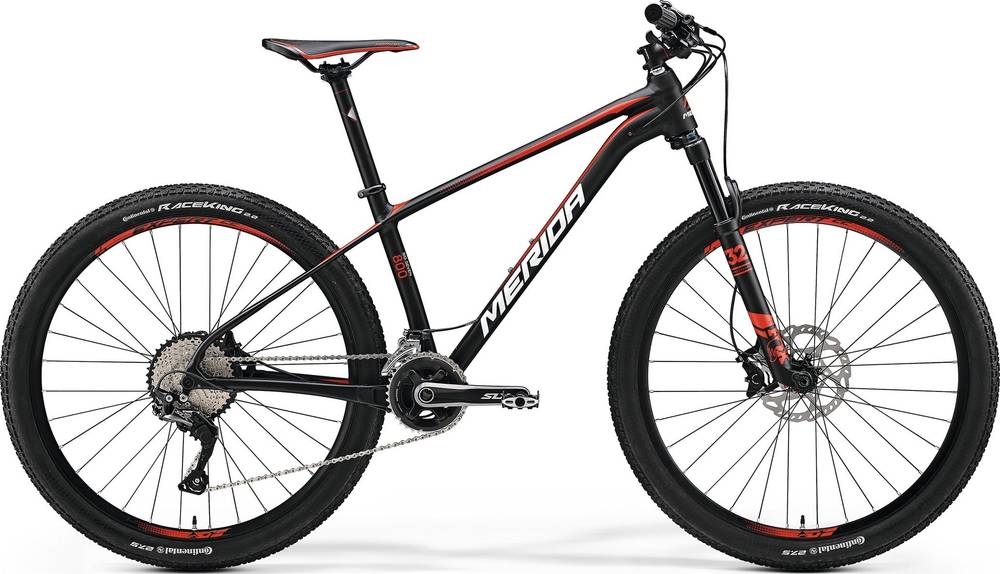

BIG.NINE 800 is part of the Merida Bignine model. Merida launched 236 bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, BIG.NINE 800 has a weight of 11.85 kg (26.12 lbs). In other words, this model is 4.64% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Merida BIG.NINE 800 2017, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
