Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Groupset XTR -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF5
Suspension Fork
Rock Shox RS1 29 100
Drivetrain
Rear Derailleur
Shimano XTR SGS Shadow+
Front Derailleur
Shimano XTR direct double
Shift Levers
Shimano XTR-i
Cassette
Shimano XTR 11-40 11s
Crank
Shimano XTR 36-26 (BB30)
Bottom Bracket
BB30, press-fit
Chain
KMC X11EL
Wheels
Rims
DT Swiss XR1501 [29] Spline One PS15-R12
Spokes
attached
Tires
Rocket Ron 2.25 Liteskin PSC 29 / Thunder Burt 2.25 LiteSkin PSC 29
Brakes
Brakes
Shimano XTR-Fin 180 disc ice / Shimano XTR-Fin 160 disc ice
Cockpit
Handlebar
PRC Team Flatbar 700
Headset
FSA No.55 E
Seat
Saddle
Prologo new Nago Evo X10 STN
Seatpost
PRC Double carbon superlite 27.2 SB0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.53 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 655 mm | 670 mm | 693 mm | 701 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 83 mm | 84 mm | 84 mm |
| Stack | 614 mm | 628 mm | 630 mm | 640 mm | 658 mm |
| Reach | 392 mm | 394 mm | 413 mm | 433 mm | 435 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 639 mm | 647 mm |
| Seat Tube Angle | 71.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1077 mm | 1084 mm | 1099 mm | 1122 mm | 1130 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 761 mm | 812 mm | 854 mm | 895 mm | 931 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

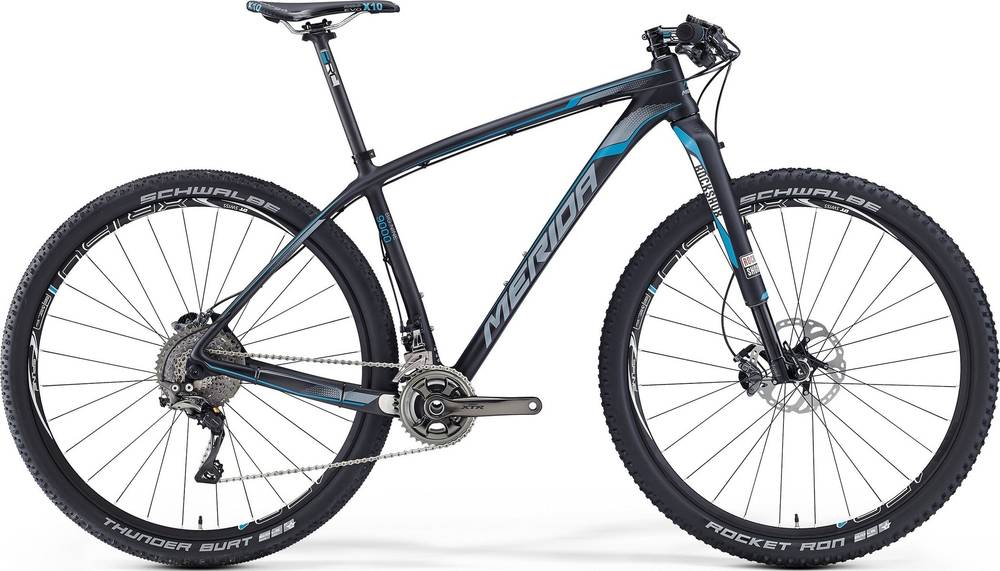

BIG.NINE 9000 is part of the Merida Bignine model. 236 bikes variations carry this model name so far. Take a sneak peek at all Merida Bignine bikes models from 2016, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 9.4 kg (20.72 lbs), Merida bike is much lighter than average. In short, the average Crosscountry bike weight is 31.91% higher than this one.
BIG.NINE 9000 components
Wheels
When leaving the production line, the BIG.NINE 9000 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE 9000 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
