Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF5
Suspension Fork
Fox Factory 32 Float SC, Air, 100mm suspension travel, Tapered, Remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XTR Shadow+
Front Derailleur
no
Shift Levers
no / Shimano XTR
Cassette
Shimano XTR, 10-51 teeth, 12 speed
Crank
Shimano XTR, 34 teeth
Bottom Bracket
Shimano BB94-41A press-fit
Chain
Shimano M9100
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
attached
Rear Hub
attached
Rims
XRC 1200 Spline 25, 110x15mm width front hub, 148x12mm width rear hub, 25mm inner width, Centerlock, Shimano 12 Speed
Spokes
attached
Tires
Continental Race King 2.2, 29x2.2", fold, RaceSport
Brakes
Brakes
Shimano XTR / Shimano XTR
Brake Levers
Shimano XTR
Cockpit
Stem
Merida Team CC, 31.8mm diameter, -17° stem angle
Handlebar
MERIDA Team CC, 720mm width, flat
Grips
Merida Team CC
Headset
FSA NO.47/50CF, 2191026456
Seat
Saddle
Prologo Scratch 2
Seatpost
MERIDA Team CC, 30.9mm diameter, 0mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.44 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 676 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 614 mm | 619 mm | 628 mm | 642 mm | 661 mm |
| Reach | 399 mm | 418 mm | 435 mm | 451 mm | 465 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 642 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1077 mm | 1098 mm | 1118 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 678 mm | 741 mm | 775 mm | 816 mm | 839 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

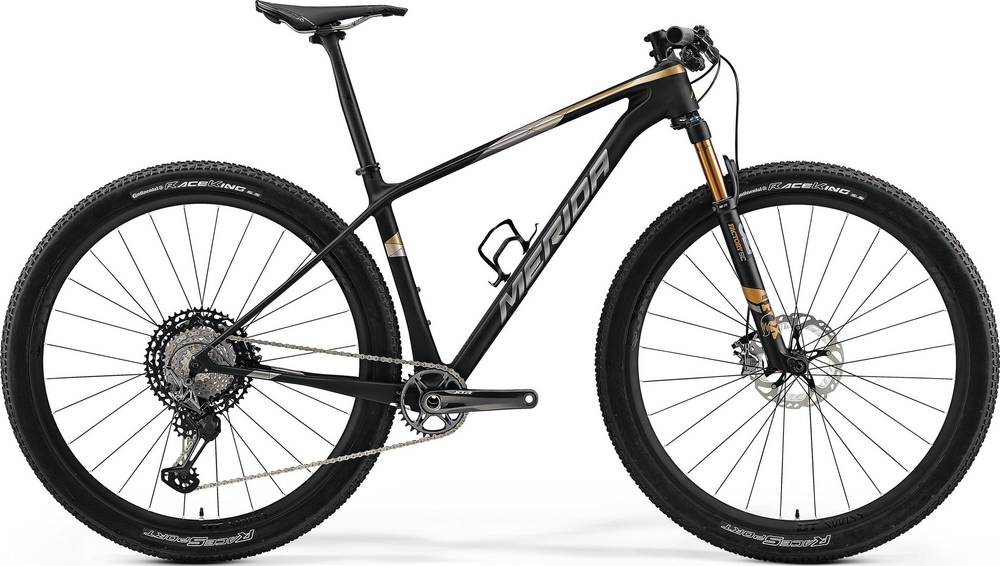

BIG.NINE 9000 is part of the Merida Bignine model. There are 236 bikes that carry this model name. You can easily view all of the Merida Bignine bikes models from 2019, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 8.88 kg (19.58 lbs), the BIG.NINE 9000 model is much lighter than average. In conclusion, the average Crosscountry bike weighs 39.64% more than BIG.NINE 9000.
BIG.NINE 9000 components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Merida BIG.NINE 9000 2019, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.NINE 9000 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
