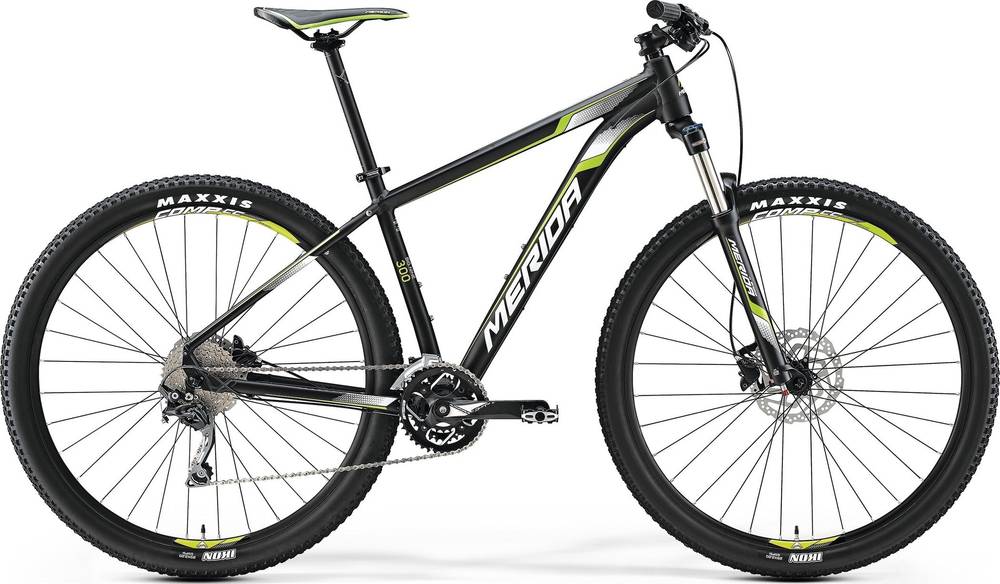

Merida BIG.NINE / BIG.SEVEN 300 2017
2017 Mountain
Weight | 13.51 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Fork SunTour XCR Air -
Groupset Deore, FSA -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE / BIG.SEVEN TFS
Suspension Fork
SR XCR air LOR 100
Drivetrain
Rear Derailleur
Shimano Deore Shadow
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
FSA Alfa drive 40-30-22
Chain
KMC X10
Wheels
Front Hub
Shimano Centerlock
Rear Hub
Shimano Centerlock
Rims
MERIDA BIG.NINE / BIG.SEVEN Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 2.2 fold
Brakes
Brakes
Shimano M315 180 cen / Shimano M315 160 cen
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA comp OS 700 R12
Headset
BC OV Hset(29") / BC OV neck(27.5")
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp SB0(29") / SB12(27.5") 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 19" | 20" | 21.5" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.66 mm | 1.62 mm | 1.47 mm | 1.6 mm | 1.47 mm | 1.5 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 329 mm | 314 mm | 314 mm | 329 mm | 314 mm | 329 mm | 329 mm | 314 mm | 314 mm |
| Front Center | 619 mm | 625 mm | 645 mm | 649 mm | 660 mm | 659 mm | 658 mm | 680 mm | 701 mm |
| Rake | 42 mm | 45 mm | 47 mm | 42 mm | 50 mm | 41 mm | 42 mm | 54 mm | 57 mm |
| Trail | 88 mm | 88 mm | 86 mm | 85 mm | 80 mm | 86 mm | 81 mm | 75 mm | 72 mm |
| Stack | 576 mm | 608 mm | 617 mm | 597 mm | 629 mm | 607 mm | 618 mm | 638 mm | 648 mm |
| Reach | 377 mm | 367 mm | 381 mm | 405 mm | 394 mm | 412 mm | 412 mm | 407 mm | 421 mm |
| Top Tube Length | 549 mm | 554 mm | 574 mm | 589 mm | 594 mm | 599 mm | 609 mm | 614 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 446 mm | 470 mm | 484 mm | 508 mm | 546 mm | 532 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 115 mm | 120 mm | 125 mm | 135 mm | 130 mm | 140 mm |
| Chainstay Length | 424 mm | 439 mm | 439 mm | 424 mm | 439 mm | 424 mm | 424 mm | 439 mm | 439 mm |
| Wheelbase | 1039 mm | 1057 mm | 1077 mm | 1069 mm | 1092 mm | 1079 mm | 1078 mm | 1112 mm | 1133 mm |
| Bottom Bracket Drop | 45 mm | 60 mm | 60 mm | 45 mm | 60 mm | 45 mm | 45 mm | 60 mm | 60 mm |
| Standover Height | 657 mm | 692 mm | 743 mm | 767 mm | 778 mm | 798 mm | 827 mm | 816 mm | 858 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
BIG.NINE / BIG.SEVEN 300 is a Merida Bignine model. Merida released 236 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida BIG.NINE / BIG.SEVEN 300 it’s weighing 13.51 kg (29.78 lbs). At this weight, is a bit heavier than average. In conclusion, the average Crosscountry bike weighs 8.95% less than BIG.NINE / BIG.SEVEN 300.
BIG.NINE / BIG.SEVEN 300 components
Fork
The BIG.NINE / BIG.SEVEN 300 comes factory-installed with the SunTour XCR Air fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the BIG.NINE / BIG.SEVEN 300 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE / BIG.SEVEN 300 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
