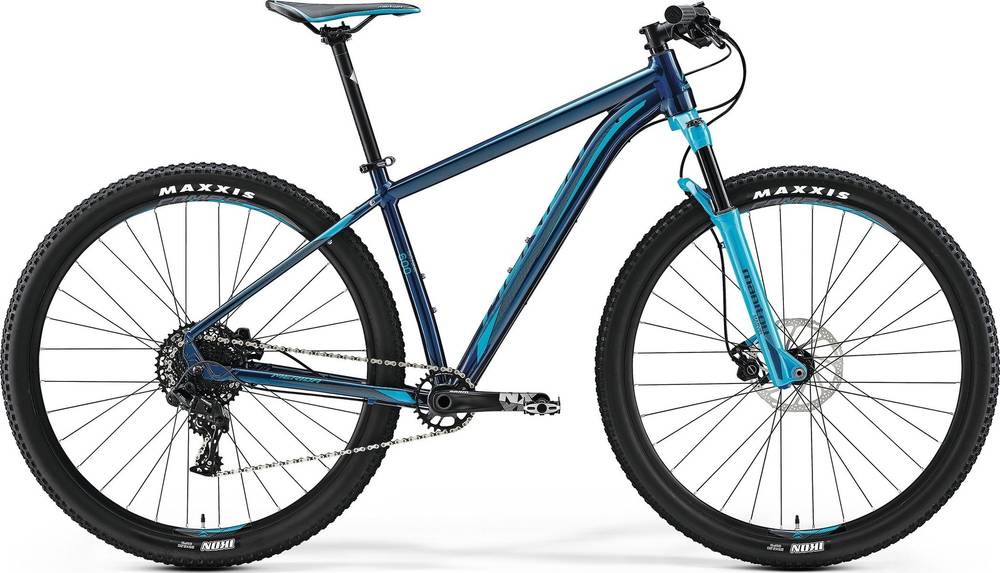

Merida BIG.NINE / BIG.SEVEN 600 2017
2017 Mountain
Weight | 12.21 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou
-
Groupset NX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE / BIG.SEVEN TFS
Suspension Fork
Manitou Marvel comp 100 15 taper
Drivetrain
Rear Derailleur
SRAM NX 11
Shift Levers
SRAM NX 11
Cassette
SRAM PG-1130 11-42
Crank
SRAM NX XSYNC 28(29")/30T(27.5") STEEL
Chain
KMC X11-1
Wheels
Front Hub
FoBearing disc 15 / Bearing Disc cassette
Rear Hub
FoBearing disc 15 / Bearing Disc cassette
Rims
MERIDA BIG.NINE / BIG.SEVEN Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 2.2 fold
Brakes
Brakes
Tektro Gimini hydraulic 180 / Tektro Gimini hydraulic 160
Brake Levers
Tektro Gimini
Cockpit
Handlebar
MERIDA Expert OS 720 flat(29") / OS 720 R12(27.5")
Headset
Big Conoid Semi(29") / Semi neck(27.5")
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB0(29") / SB15(27.5") 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 19" | 20" | 21.5" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.66 mm | 1.62 mm | 1.47 mm | 1.6 mm | 1.47 mm | 1.5 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 329 mm | 314 mm | 314 mm | 329 mm | 314 mm | 329 mm | 329 mm | 314 mm | 314 mm |
| Front Center | 619 mm | 625 mm | 645 mm | 649 mm | 660 mm | 659 mm | 658 mm | 680 mm | 701 mm |
| Rake | 42 mm | 45 mm | 47 mm | 42 mm | 50 mm | 41 mm | 42 mm | 54 mm | 57 mm |
| Trail | 88 mm | 88 mm | 86 mm | 85 mm | 80 mm | 86 mm | 81 mm | 75 mm | 72 mm |
| Stack | 576 mm | 608 mm | 617 mm | 597 mm | 629 mm | 607 mm | 618 mm | 638 mm | 648 mm |
| Reach | 377 mm | 367 mm | 381 mm | 405 mm | 394 mm | 412 mm | 412 mm | 407 mm | 421 mm |
| Top Tube Length | 549 mm | 554 mm | 574 mm | 589 mm | 594 mm | 599 mm | 609 mm | 614 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 446 mm | 470 mm | 484 mm | 508 mm | 546 mm | 532 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 115 mm | 120 mm | 125 mm | 135 mm | 130 mm | 140 mm |
| Chainstay Length | 424 mm | 439 mm | 439 mm | 424 mm | 439 mm | 424 mm | 424 mm | 439 mm | 439 mm |
| Wheelbase | 1039 mm | 1057 mm | 1077 mm | 1069 mm | 1092 mm | 1079 mm | 1078 mm | 1112 mm | 1133 mm |
| Bottom Bracket Drop | 45 mm | 60 mm | 60 mm | 45 mm | 60 mm | 45 mm | 45 mm | 60 mm | 60 mm |
| Standover Height | 657 mm | 692 mm | 743 mm | 767 mm | 778 mm | 798 mm | 827 mm | 816 mm | 858 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
Model Overview
BIG.NINE / BIG.SEVEN 600 is a Merida Bignine model. There are 236 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida BIG.NINE / BIG.SEVEN 600 it’s weighing 12.21 kg (26.92 lbs). At this weight, is slightly lighter than average. In other words, this model is 1.56% lighter than the average Crosscountry bike.
BIG.NINE / BIG.SEVEN 600 components
Fork
Merida BIG.NINE / BIG.SEVEN 600 2017 bike is equipped with the Manitou fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the BIG.NINE / BIG.SEVEN 600 bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE / BIG.SEVEN 600 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
