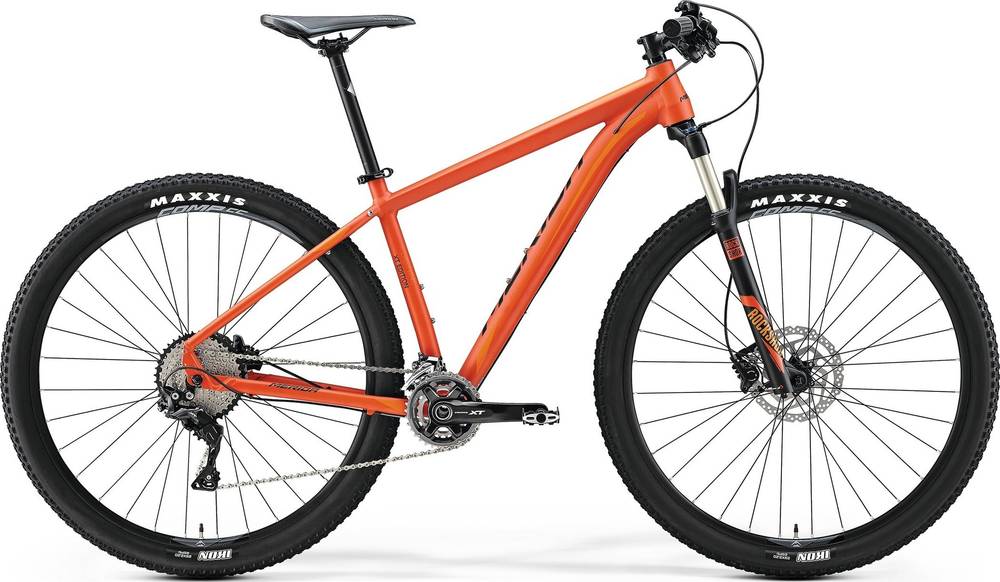

Merida BIG.NINE / BIG.SEVEN XT-EDITION 2017
2017 Mountain
Weight | 12.46 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE / BIG.SEVEN TFS
Suspension Fork
Rock Shox 30G RL R Q SA 100 DFBS 46T AIR Remote
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT-i / Shimano XT-i-11
Cassette
Shimano M7000-11 11-42
Crank
Shimano XT 34-24(29") / 36-26(27.5")
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA BIG.NINE / BIG.SEVEN Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 2.2 fold
Brakes
Brakes
Shimano M447 180 cen / Shimano M447 160 cen
Brake Levers
Shimano M506
Cockpit
Handlebar
MERIDA Expert OS 720 flat(29") / OS 720 R12(27.5")
Headset
Big Conoid Semi(29") / Semi neck(27.5")
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB0(29") / SB15(27.5") 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 19" | 20" | 21.5" | 21" | 23" |
|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.66 mm | 1.62 mm | 1.47 mm | 1.6 mm | 1.47 mm | 1.5 mm | 1.57 mm | 1.54 mm |
| Bottom Bracket Height | 329 mm | 314 mm | 314 mm | 329 mm | 314 mm | 329 mm | 329 mm | 314 mm | 314 mm |
| Front Center | 619 mm | 625 mm | 645 mm | 649 mm | 660 mm | 659 mm | 658 mm | 680 mm | 701 mm |
| Rake | 42 mm | 45 mm | 47 mm | 42 mm | 50 mm | 41 mm | 42 mm | 54 mm | 57 mm |
| Trail | 88 mm | 88 mm | 86 mm | 85 mm | 80 mm | 86 mm | 81 mm | 75 mm | 72 mm |
| Stack | 576 mm | 608 mm | 617 mm | 597 mm | 629 mm | 607 mm | 618 mm | 638 mm | 648 mm |
| Reach | 377 mm | 367 mm | 381 mm | 405 mm | 394 mm | 412 mm | 412 mm | 407 mm | 421 mm |
| Top Tube Length | 549 mm | 554 mm | 574 mm | 589 mm | 594 mm | 599 mm | 609 mm | 614 mm | 634 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° | 72.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 446 mm | 470 mm | 484 mm | 508 mm | 546 mm | 532 mm | 584 mm |
| Head Tube Angle | 70.5 ° | 70 ° | 70 ° | 71 ° | 70.5 ° | 71 ° | 71.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 115 mm | 120 mm | 125 mm | 135 mm | 130 mm | 140 mm |
| Chainstay Length | 424 mm | 439 mm | 439 mm | 424 mm | 439 mm | 424 mm | 424 mm | 439 mm | 439 mm |
| Wheelbase | 1039 mm | 1057 mm | 1077 mm | 1069 mm | 1092 mm | 1079 mm | 1078 mm | 1112 mm | 1133 mm |
| Bottom Bracket Drop | 45 mm | 60 mm | 60 mm | 45 mm | 60 mm | 45 mm | 45 mm | 60 mm | 60 mm |
| Standover Height | 657 mm | 692 mm | 743 mm | 767 mm | 778 mm | 798 mm | 827 mm | 816 mm | 858 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
About this model
BIG.NINE / BIG.SEVEN XT-EDITION is a Merida Bignine model. Merida released 236 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida BIG.NINE / BIG.SEVEN XT-EDITION it’s weighing 12.46 kg (27.47 lbs). At this weight, is slightly heavier than average. In short, the average Crosscountry bike weight is 0.48% lower than this one.
BIG.NINE / BIG.SEVEN XT-EDITION components
Wheels size
When it comes to wheels, the BIG.NINE / BIG.SEVEN XT-EDITION bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE / BIG.SEVEN XT-EDITION has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
