Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big.Nine Carbon Comp R12
Suspension Fork
Fox 32 Float 29 CTD Remote-Ready O/C (1.5T, 15QR) - Evo 100
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+
Front Derailleur
Shimano Deore XT HD double
Shift Levers
Shimano Deore XT ispec
Cassette
Shimano CS-HG81-10 11-36
Crank
Shimano Deore XT 38-24
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
attached / RWS 12-142 axle
Rear Hub
attached / RWS 12-142 axle
Rims
Fulcrum Red Power 29 XL F15-R12
Spokes
attached
Tires
Schwalbe Racing Ralph Evo 29 2.25 fold
Brakes
Brakes
Shimano Deore XT-Fin 180 mm ice Disc / Shimano Deore XT-Fin 160 mm ice Disc
Brake Levers
attached
Cockpit
Handlebar
PRC Team Flatbar 680
Headset
Big Conoid A-Bearing
Seat
Saddle
ProLogo Nago Evo X10 T2.0
Seatpost
PRC Double Carbon SuperLite 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.53 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Stack | 614 mm | 628 mm | 630 mm | 640 mm | 658 mm |
| Reach | 392 mm | 394 mm | 413 mm | 433 mm | 435 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 639 mm | 647 mm |
| Seat Tube Angle | 71.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

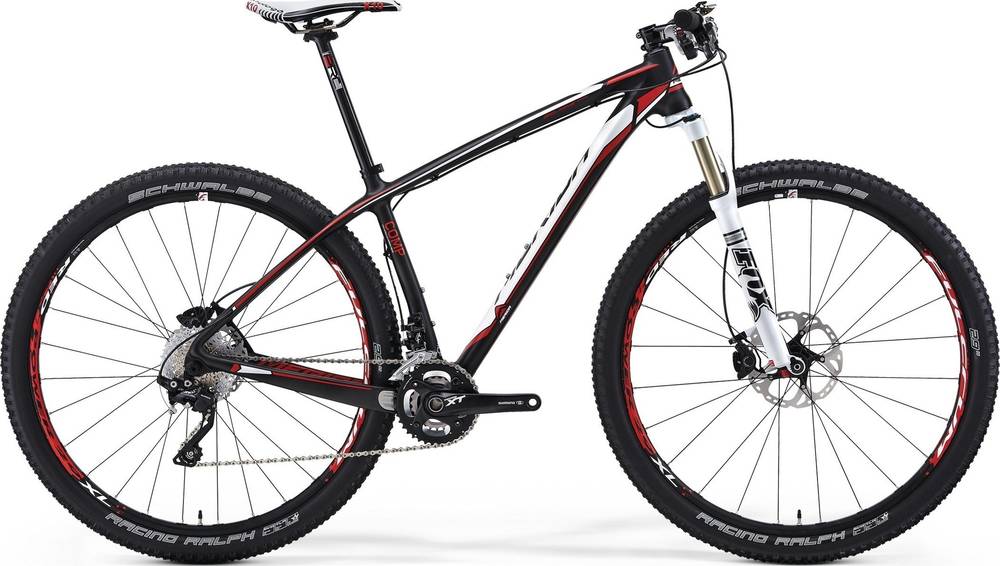

Big.Nine CF 3000 is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Big.Nine CF 3000 has a weight of 10.5 kg (23.15 lbs). In short, the average Crosscountry bike weight is 18.1% higher than this one.
Big.Nine CF 3000 components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The Big.Nine CF 3000 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Big.Nine CF 3000 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
