Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Float 32
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big.Nine Carbon Comp R12
Suspension Fork
Fox 32 Float 29 CTD FIT Remote - 100 15 mm taper
Drivetrain
Rear Derailleur
Shimano XTR Shadow+
Front Derailleur
Shimano XTR HD triple
Shift Levers
Shimano XTR ispec
Cassette
Shimano CS-M771-10 11-36
Crank
Shimano XTR 42-34-24
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
attached / RWS 12-142 axle
Rear Hub
attached / RWS 12-142 axle
Rims
Fulcrum Red Power 29 XL F15-R12
Spokes
attached
Tires
Schwalbe Racing Ralph Evo 29 2.25 fold
Brakes
Brakes
Shimano XTR-Fin 180 mm ice Disc / Shimano XTR-Fin 160 mm ice Disc
Brake Levers
attached
Cockpit
Handlebar
FSA K-Force Flat 685
Headset
Big Conoid A-Bearing
Seat
Saddle
ProLogo Nago Evo X10 TiroX
Seatpost
FSA K-Force Lite SB0 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.53 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Stack | 614 mm | 628 mm | 630 mm | 640 mm | 658 mm |
| Reach | 392 mm | 394 mm | 413 mm | 433 mm | 435 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 639 mm | 647 mm |
| Seat Tube Angle | 71.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

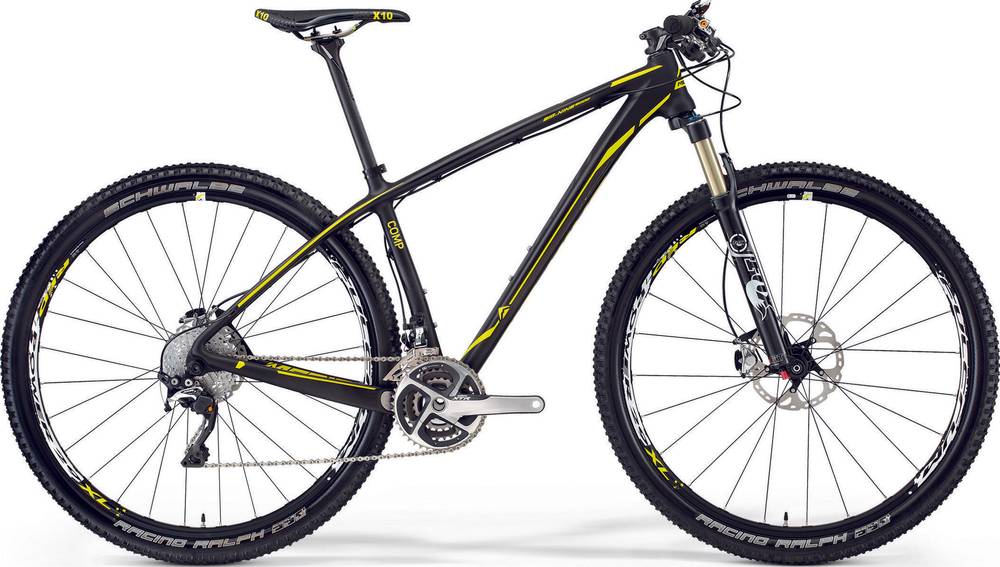

Big.Nine CF 5000 is a Merida Bignine model. Merida launched 236 bikes of this model so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 9.91 kg (21.85 lbs), the Big.Nine CF 5000 model is much lighter than average. In other words, this model is 25.13% lighter than the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Big.Nine CF 5000 model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Big.Nine CF 5000 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
