Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF5
Suspension Fork
Rock Shox SID XX-29 SA 15mm 100 Xlock taper
Drivetrain
Rear Derailleur
SRAM XX1 11s
Front Derailleur
no
Shift Levers
no / SRAM XX1 trigger
Cassette
SRAM XG-11s 10-42
Crank
SRAM XX1 32 BB30
Bottom Bracket
attached
Chain
KMC X11 11s
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Red Power HP 29 F15-R12 disc
Tires
Maxxis Aspen 29er Exception 2.1
Brakes
Brakes
SRAM XX 180 disc / SRAM XX 160 disc
Brake Levers
attached
Cockpit
Handlebar
PRC Team Flatbar 700
Headset
Big Conoid A-bearing
Seat
Saddle
Prologo Nago Evo X10 TiroX
Seatpost
PRC Double carbon superlite 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.53 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 655 mm | 670 mm | 693 mm | 701 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 83 mm | 84 mm | 84 mm |
| Stack | 614 mm | 628 mm | 630 mm | 640 mm | 658 mm |
| Reach | 392 mm | 394 mm | 413 mm | 433 mm | 435 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 639 mm | 647 mm |
| Seat Tube Angle | 71.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1077 mm | 1084 mm | 1099 mm | 1122 mm | 1130 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 761 mm | 812 mm | 854 mm | 895 mm | 931 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

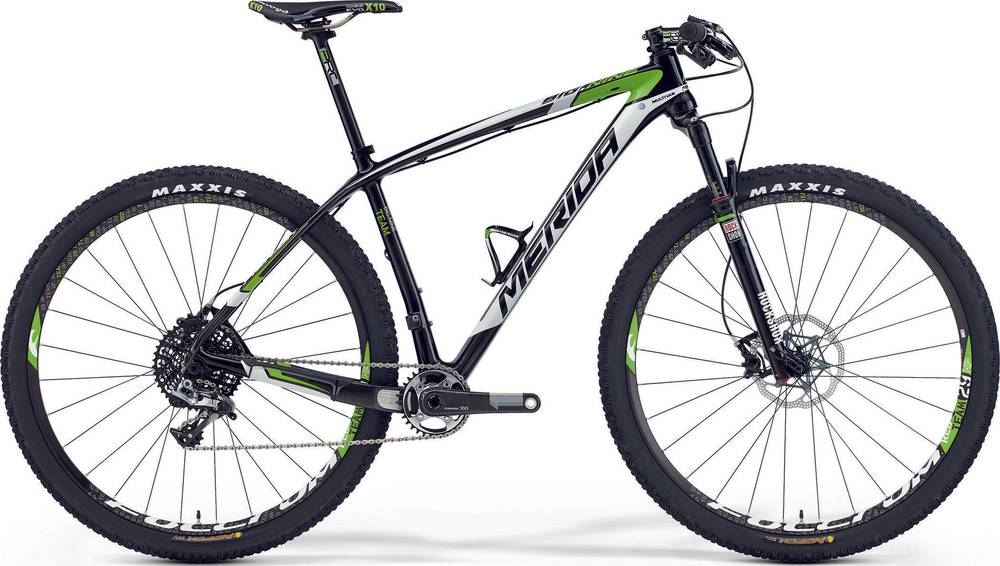

Big.Nine Team is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the RockShox SID fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Merida Big.Nine Team 2015, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Big.Nine Team has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
