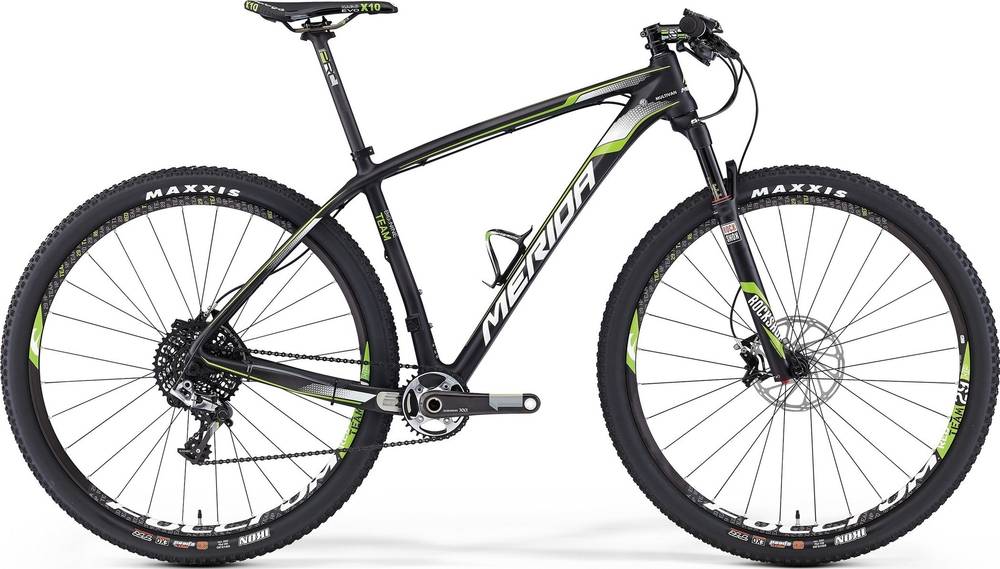

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID
-
Groupset XX1, X01 -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF3
Suspension Fork
Rock Shox SID XX-29 SA 15mm 100 Xlock taper
Drivetrain
Rear Derailleur
SRAM XX1 11s
Shift Levers
SRAM X01 trigger
Cassette
SRAM XG-11s 10-42
Crank
SRAM XX1 32T (BB30)
Bottom Bracket
BB30, press-fit
Chain
SRAM PCX1
Wheels
Rims
Fulcrum Red Power HP 29
Tires
Maxxis Ikon 29 2.2 3C
Brakes
Brakes
Guide Ultimate 180 disc / Guide Ultimate 160 disc
Cockpit
Handlebar
PRC Team Flatbar 700
Headset
FSA No.55 E
Seat
Saddle
Prologo Nago Evo X10 TiroX
Seatpost
PRC Double carbon superlite 27.2 SB0
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.59 mm | 1.53 mm | 1.48 mm | 1.51 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 648 mm | 655 mm | 670 mm | 693 mm | 701 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 83 mm | 84 mm | 84 mm |
| Stack | 614 mm | 628 mm | 630 mm | 640 mm | 658 mm |
| Reach | 392 mm | 394 mm | 413 mm | 433 mm | 435 mm |
| Top Tube Length | 577 mm | 596 mm | 616 mm | 639 mm | 647 mm |
| Seat Tube Angle | 71.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1077 mm | 1084 mm | 1099 mm | 1122 mm | 1130 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 761 mm | 812 mm | 854 mm | 895 mm | 931 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
BIG.NINE TEAM completes the Merida Bignine model. Merida launched 236 bikes of this model so far. You can easily view all of the Merida Bignine bikes models from 2016, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida BIG.NINE TEAM it’s weighing 8.61 kg (18.98 lbs). At this weight, is much lighter than average. In other words, this model is 44.02% lighter than the average Crosscountry bike.
BIG.NINE TEAM components
Fork
Merida BIG.NINE TEAM 2016 bike is equipped with the RockShox SID fork, and has 100mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The BIG.NINE TEAM 2016 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
