Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Recon Gold RL
-
Groupset X9, SRAM -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big.Nine Lite BC-D-Single R12
Suspension Fork
Rock Shox Recon Gold TK 29-46 100 taper Pushlock- MMX
Drivetrain
Rear Derailleur
SRAM X9 Long T2
Front Derailleur
SRAM X9 HD double
Shift Levers
SRAM X9 Trigger
Cassette
Shimano CS-HG-10 11-36
Crank
SRAM S1000 38-24 GXP
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano SLX Cen / Shimano SLX-12 Cen
Rear Hub
Shimano SLX Cen / Shimano SLX-12 Cen
Rims
MERIDA Big.Nine Pro D
Spokes
black stainless
Tires
Maxxis CrossMark 29er 2.1 fold
Brakes
Brakes
Magura MT4 180 mm / Magura MT4 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Pro OS 680 Flat
Headset
Big Conoid A-Bearing
Seat
Saddle
ProLogo Kappa Evo
Seatpost
Merida Pro H SB0 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.52 mm | 1.45 mm | 1.41 mm | 1.45 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Stack | 606 mm | 620 mm | 622 mm | 632 mm | 651 mm |
| Reach | 393 mm | 409 mm | 428 mm | 447 mm | 449 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 639 mm | 647 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 380 mm | 445 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 95 mm | 110 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

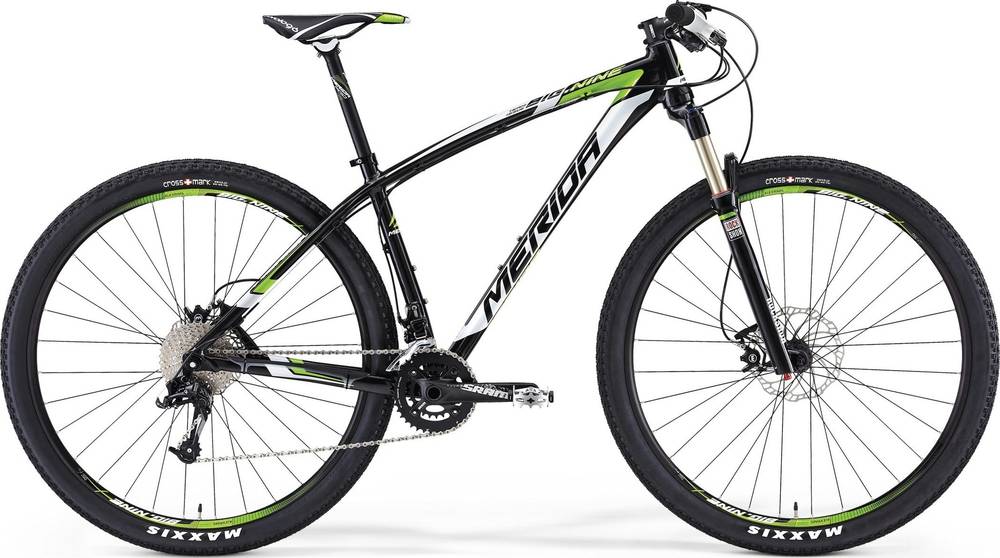

Big.Nine Team Issue is part of the Merida Bignine model. Merida released 236 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 11.9 kg (26.23 lbs), the Big.Nine Team Issue model is slightly lighter than average. In other words, this model is 4.2% lighter than the average Crosscountry bike.
Big.Nine Team Issue components
Fork
The RockShox Recon Gold RL is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Big.Nine Team Issue model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Big.Nine Team Issue has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
