Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Groupset XT -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE CF3
Suspension Fork
32 FLOAT Performance SC 29" 100 Remote
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT / Shimano XT 11
Cassette
Shimano XT 11 11-42
Crank
Shimano: XT 36-26 boost PF
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano Deore 15 cen / Shimano Deore-12 cen boost
Rear Hub
Shimano Deore 15 cen / Shimano Deore-12 cen boost
Rims
MERIDA Expert CC
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon 29er 2.2 fold
Brakes
Brakes
Shimano XT 180 cen / Shimano XT 160 cen
Brake Levers
Shimano XT
Cockpit
Handlebar
MERIDA Expert OS 720 flat
Headset
Big Conoid A-bearing
Seat
Saddle
Prologo Kappa 3
Seatpost
MERIDA carbon Expert SB0 30.9
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.44 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 676 mm | 696 mm | 717 mm | 738 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 87 mm | 87 mm | 87 mm |
| Stack | 614 mm | 619 mm | 628 mm | 642 mm | 661 mm |
| Reach | 399 mm | 418 mm | 435 mm | 451 mm | 465 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 642 mm | 662 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 444 mm | 483 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 125 mm | 145 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1077 mm | 1098 mm | 1118 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 678 mm | 741 mm | 775 mm | 816 mm | 839 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

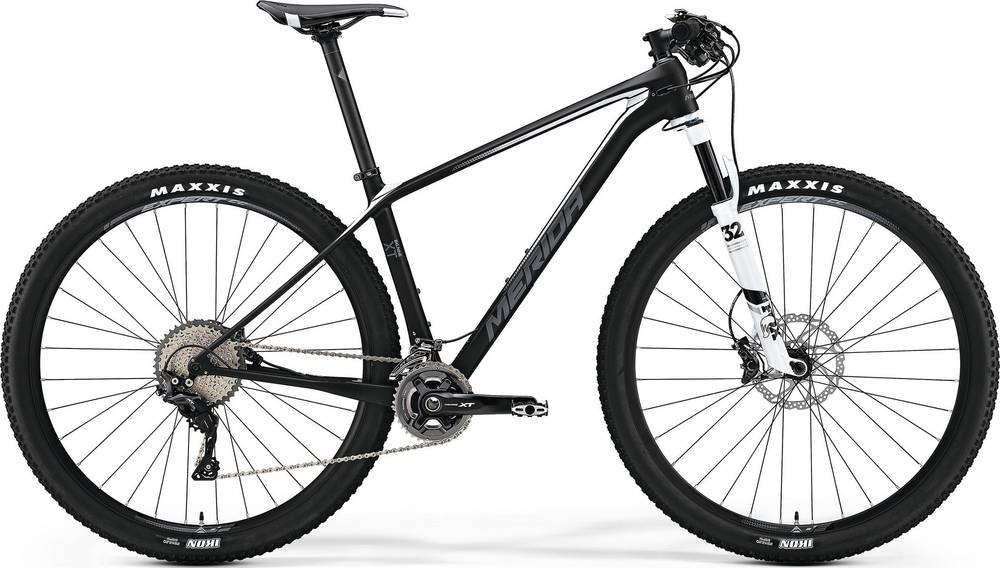

BIG.NINE XT is a Merida Bignine model. Merida released 236 bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 10.86 kg (23.94 lbs), the BIG.NINE XT model is considerably lighter than average. In short, the average Crosscountry bike weight is 14.18% higher than this one.
BIG.NINE XT components
Wheels size
The wheels on BIG.NINE XT are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.NINE XT has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
