Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Groupset XT -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS
Suspension Fork
Rock Shox 30G RL R 29 Q SA 100 DFBS 46T AIR Remote
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Front Derailleur
Shimano XT HD double
Shift Levers
Shimano XT-i / Shimano XT-i-11
Cassette
Shimano M7000-11 11-42
Crank
Shimano XT 34-24
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X11
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA BIG.NINE comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 29er 2.2 fold
Brakes
Brakes
Shimano M447 180 cen / Shimano M447 160 cen
Brake Levers
Shimano M506
Cockpit
Handlebar
MERIDA Expert OS 720 flat
Headset
Big Conoid Semi
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Expert SB0 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.61 mm | 1.59 mm | 1.56 mm | 1.53 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 625 mm | 645 mm | 660 mm | 680 mm | 701 mm |
| Rake | 45 mm | 47 mm | 50 mm | 54 mm | 57 mm |
| Trail | 88 mm | 86 mm | 80 mm | 75 mm | 72 mm |
| Stack | 612 mm | 621 mm | 633 mm | 642 mm | 652 mm |
| Reach | 371 mm | 385 mm | 398 mm | 411 mm | 425 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm | 638 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 446 mm | 484 mm | 532 mm | 584 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1061 mm | 1081 mm | 1096 mm | 1116 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 696 mm | 747 mm | 782 mm | 820 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

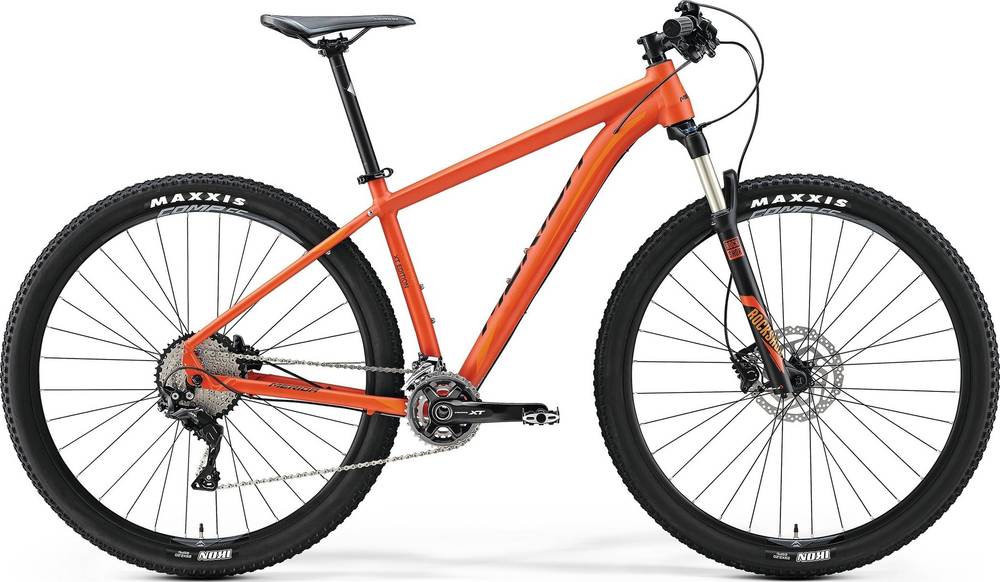

BIG.NINE XT-EDITION completes the Merida Bignine model. Merida launched 236 bikes of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Merida BIG.NINE XT-EDITION it’s weighing 12.46 kg (27.47 lbs). At this weight, is slightly heavier than average. To sum up, it’s 0.48% heavier than the average weight of Crosscountry bikes.
Overview of components
Wheels
As for the wheels, Merida BIG.NINE XT-EDITION 2017, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.NINE XT-EDITION is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
