Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Markhor
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Suspension Fork
Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset
Drivetrain
Rear Derailleur
Shimano XT M8100 Shadow+, SGS
Shift Levers
Shimano XT, Multi Release
Cassette
Shimano Deore M6100, 10-51 teeth, 12 speed
Crank
Shimano XT, 32 teeth, 170 mm-S, 175 mm-M up
Bottom Bracket
Shimano BB52 BSA
Chain
KMC X12
Pedals
VP VPE-891
Wheels
Front Hub
Shimano MT400-B / Shimano MT401, 110x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B / Shimano MT401, 110x15mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon, 29x2.2", wire
Brakes
Brakes
Shimano XT, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 760mm width, flat
Headset
MERIDA M2331
Seat
Saddle
MERIDA COMP SL, V-mount, incl. MERIDA minitool
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.55 mm | 1.52 mm | 1.5 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 636 mm | 657 mm | 677 mm | 698 mm | 719 mm |
| Rake | 46 mm | 46 mm | 45 mm | 46 mm | 46 mm |
| Trail | 87 mm | 87 mm | 88 mm | 87 mm | 87 mm |
| Stack | 618 mm | 632 mm | 646 mm | 660 mm | 674 mm |
| Reach | 386 mm | 402 mm | 418 mm | 433 mm | 449 mm |
| Top Tube Length | 574 mm | 594 mm | 614 mm | 634 mm | 654 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 430 mm | 470 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm | 145 mm | 160 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1073 mm | 1094 mm | 1114 mm | 1135 mm | 1156 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 683 mm | 731 mm | 767 mm | 804 mm | 847 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model

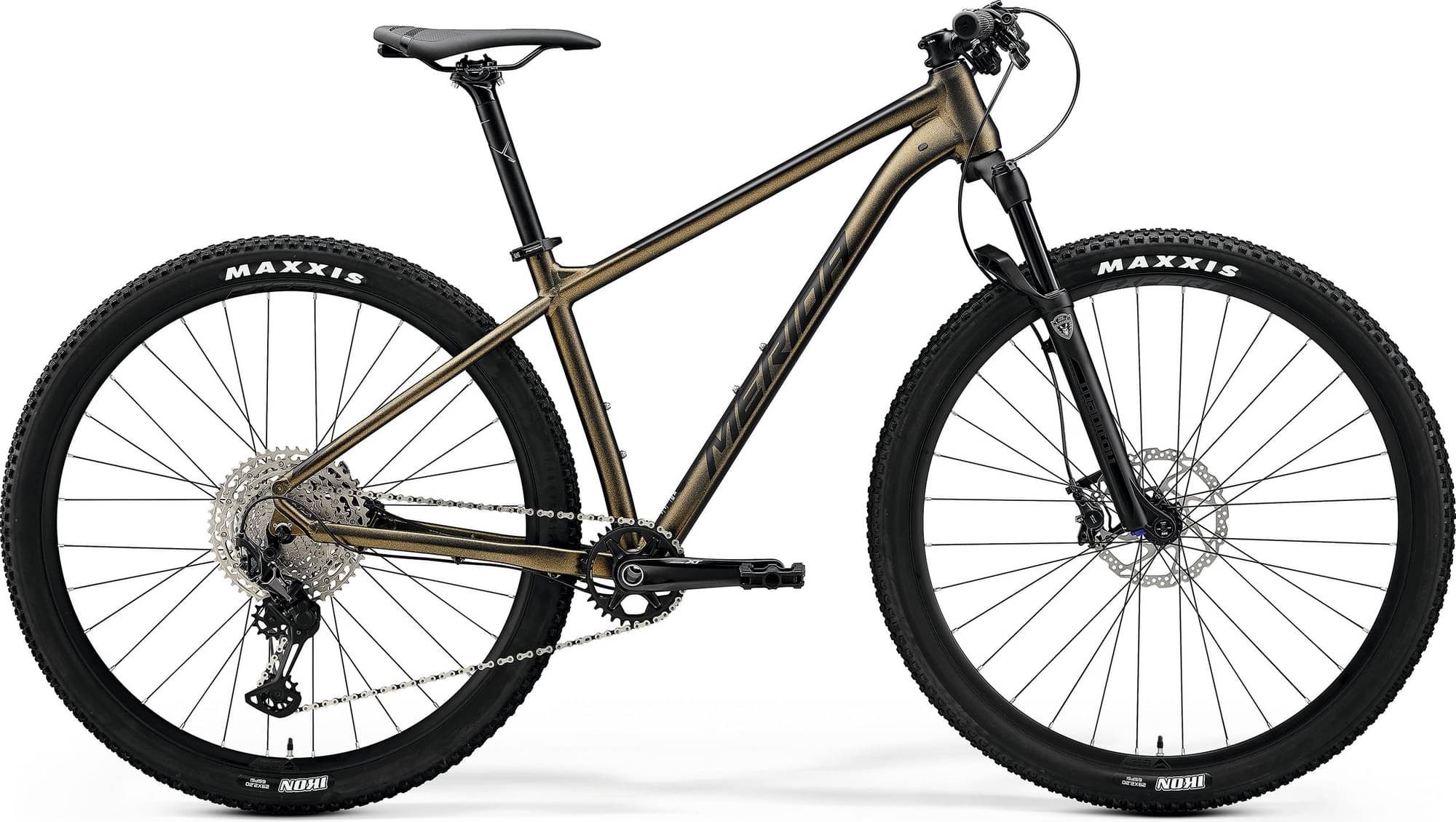

BIG.NINE XT-EDITION completes the Merida Bignine model. Merida launched 236 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Merida BIG.NINE 15 2023 is the most economical model, with a starting price of 528$. Merida BIG.NINE 7000 2023 on the other hand costs 3502$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
BIG.NINE XT-EDITION components
Fork
This bike has the Manitou Markhor fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the BIG.NINE XT-EDITION model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.NINE XT-EDITION comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
