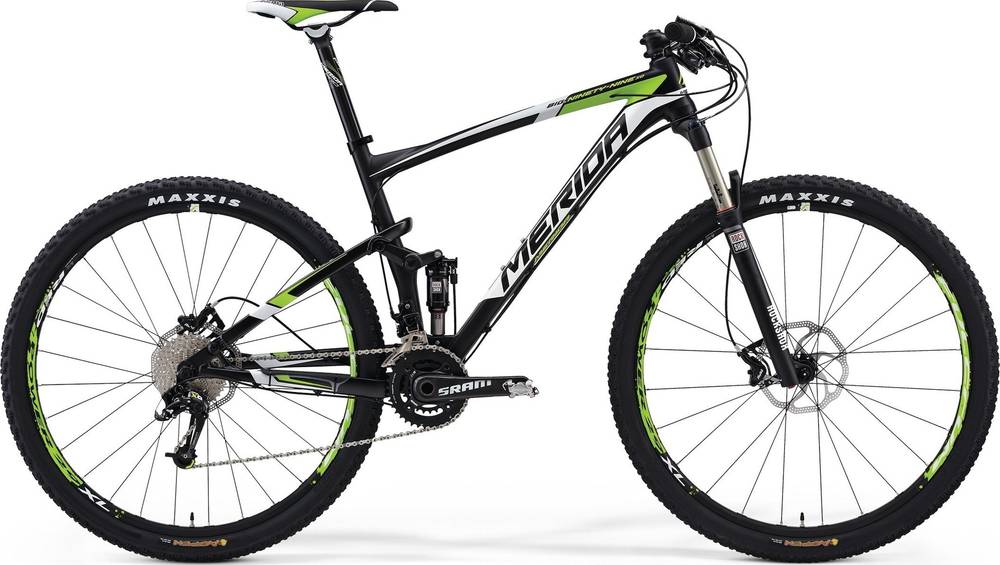

Merida Big Ninety-Nine CF XO-Edition 2014
2014 Mountain
Weight | 12.63 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork RockShox Reba
-
Groupset X0, SRAM -
Suspension Full -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big Ninety-Nine Pro R12
Suspension Fork
Rock Shox Reba RL 29 QR SA 120 taper Pushlock- MMX
Rear Shock
Rock Shox Monarch XX X-Lock MMX right
Drivetrain
Rear Derailleur
SRAM XO long T2
Front Derailleur
SRAM XO HD double
Shift Levers
SRAM XO Trigger
Cassette
Shimano CS-HG-10 11-36
Crank
SRAM S2210 Carbon 38-24 GXP
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
attached / 12 mm Thru axle
Rear Hub
attached / 12 mm Thru axle
Rims
Fulcrum Red Power 29 XL FQR-R12
Spokes
attached
Tires
Maxxis Aspen 29er ExCeption 2.1
Brakes
Brakes
Avid Elixir 5 MM 180 mm Disc
Brake Levers
attached
Cockpit
Handlebar
FSA Afterburner Flat 680
Headset
Big Conoid A-Bearing
Seat
Saddle
Selle Italia X1
Seatpost
Merida Carbon H SB0 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.4 mm | 1.38 mm | 1.4 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 347 mm | 347 mm |
| Stack | 588 mm | 595 mm | 605 mm | 616 mm | 635 mm |
| Reach | 397 mm | 415 mm | 432 mm | 448 mm | 452 mm |
| Top Tube Length | 579 mm | 599 mm | 619 mm | 639 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 432 mm | 482 mm | 530 mm | 584 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Big Ninety-Nine CF XO-Edition belongs to the Merida Big Ninety Nine model. Merida launched 7 bikes of this model so far. You can easily view all of the Merida Big Ninety Nine bikes models from 2014, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, Big Ninety-Nine CF XO-Edition has a weight of 12.63 kg (27.84 lbs). In other words, this model is 2.77% lighter than the average Trail bike.
Overview of components
Fork
This bike has the RockShox Reba fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Big Ninety-Nine CF XO-Edition bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
