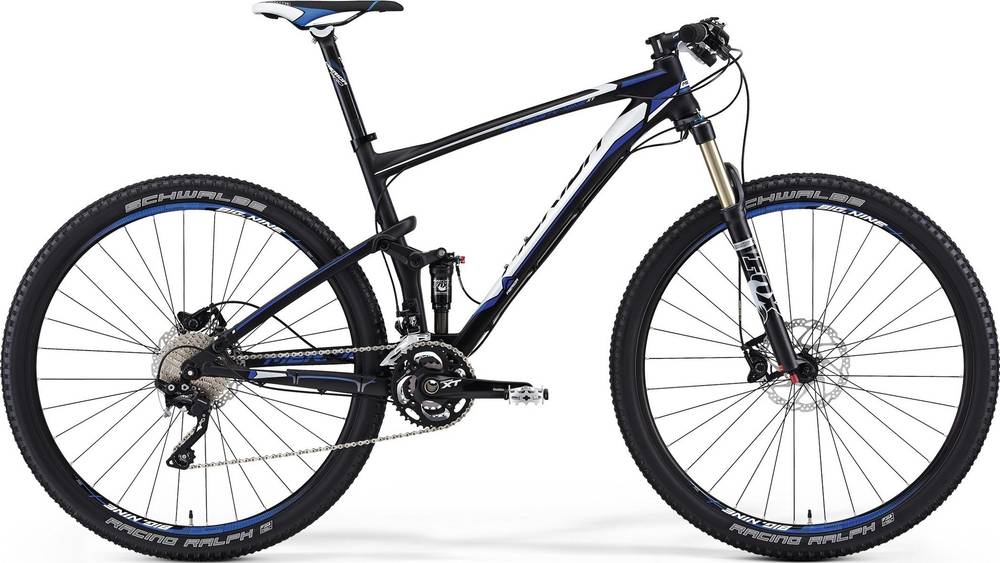

Merida Big Ninety-Nine CF XT-Edition 2014
2014 Mountain
Weight | 13.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Float 32
-
Groupset XT -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Big Ninety-Nine Pro R12
Suspension Fork
Fox 32 Float 29 CTD Remote-Ready O/C **(1.5T) - Evo 120
Rear Shock
Fox Float CTD Remote BV SV - Factory
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow+
Front Derailleur
Shimano Deore XT HD Triple
Shift Levers
Shimano Deore XT ispec
Cassette
Shimano CS-HG-10 11-36
Crank
Shimano Deore XT 40-30-22
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
Shimano Deore Cen / Shimano Deore-12 Cen
Rear Hub
Shimano Deore Cen / Shimano Deore-12 Cen
Rims
MERIDA Big.Nine Pro D
Spokes
black stainless
Tires
Schwalbe Racing Ralph 29 Perf. 2.25 fold
Brakes
Brakes
Shimano M596 180 mm Cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA Pro OS 680 Flat
Headset
Big Conoid A-Bearing
Seat
Saddle
Selle Italia X1
Seatpost
Merida Carbon H SB0 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.4 mm | 1.38 mm | 1.4 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 347 mm | 347 mm |
| Stack | 588 mm | 595 mm | 605 mm | 616 mm | 635 mm |
| Reach | 397 mm | 415 mm | 432 mm | 448 mm | 452 mm |
| Top Tube Length | 579 mm | 599 mm | 619 mm | 639 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 432 mm | 482 mm | 530 mm | 584 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 27 mm | 27 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Big Ninety-Nine CF XT-Edition belongs to the Merida Big Ninety Nine model. 7 bikes variations carry this model name so far. Take a sneak peek at all Merida Big Ninety Nine bikes models from 2014, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
Trail bikes have an average weight of 12.98 kg (28.62 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly heavier than average, Big Ninety-Nine CF XT-Edition has a weight of 13.2 kg (29.1 lbs). In other words, this model is 1.69% heavier than the average Trail bike.
Big Ninety-Nine CF XT-Edition components
Fork
The fork installed on this bike is the Fox Float 32 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Big Ninety-Nine CF XT-Edition 2014 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Big Ninety-Nine CF XT-Edition has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
