Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCE
-
Groupset Tourney, Altus -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN SPEED
Suspension Fork
Suntour XCE28; Coil; 100 STR
Drivetrain
Rear Derailleur
Shimano TY300, TOURNEY
Front Derailleur
Shimano TY300, TOURNEY
Shift Levers
Shimano SL M310
Cassette
Shimano CS-HG200-12-32, 7s
Crank
Shimano TY301
Bottom Bracket
Cartridge Bearing
Chain
CN-7s
Pedals
Plastic VPE-891
Wheels
Front Hub
Alloy Disc, Quick Release
Rear Hub
Alloy Disc, Quick Release
Rims
MERIDA double D, alloy
Tires
CST PATROL (27.5x2.25")
Brakes
Brakes
BR-MT200 Hydraulic Disc
Cockpit
Handlebar
MERIDA Comp
Headset
A-Head OS
Seat
Saddle
Merida Comfort DDK-200
Seatpost
MERIDA Speed
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.57 mm | 1.57 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 618 mm | 629 mm | 633 mm | 643 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 85 mm | 85 mm | 81 mm | 81 mm |
| Stack | 587 mm | 592 mm | 603 mm | 613 mm |
| Reach | 368 mm | 377 mm | 383 mm | 390 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1036 mm | 1047 mm | 1051 mm | 1062 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 644 mm | 680 mm | 725 mm | 758 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

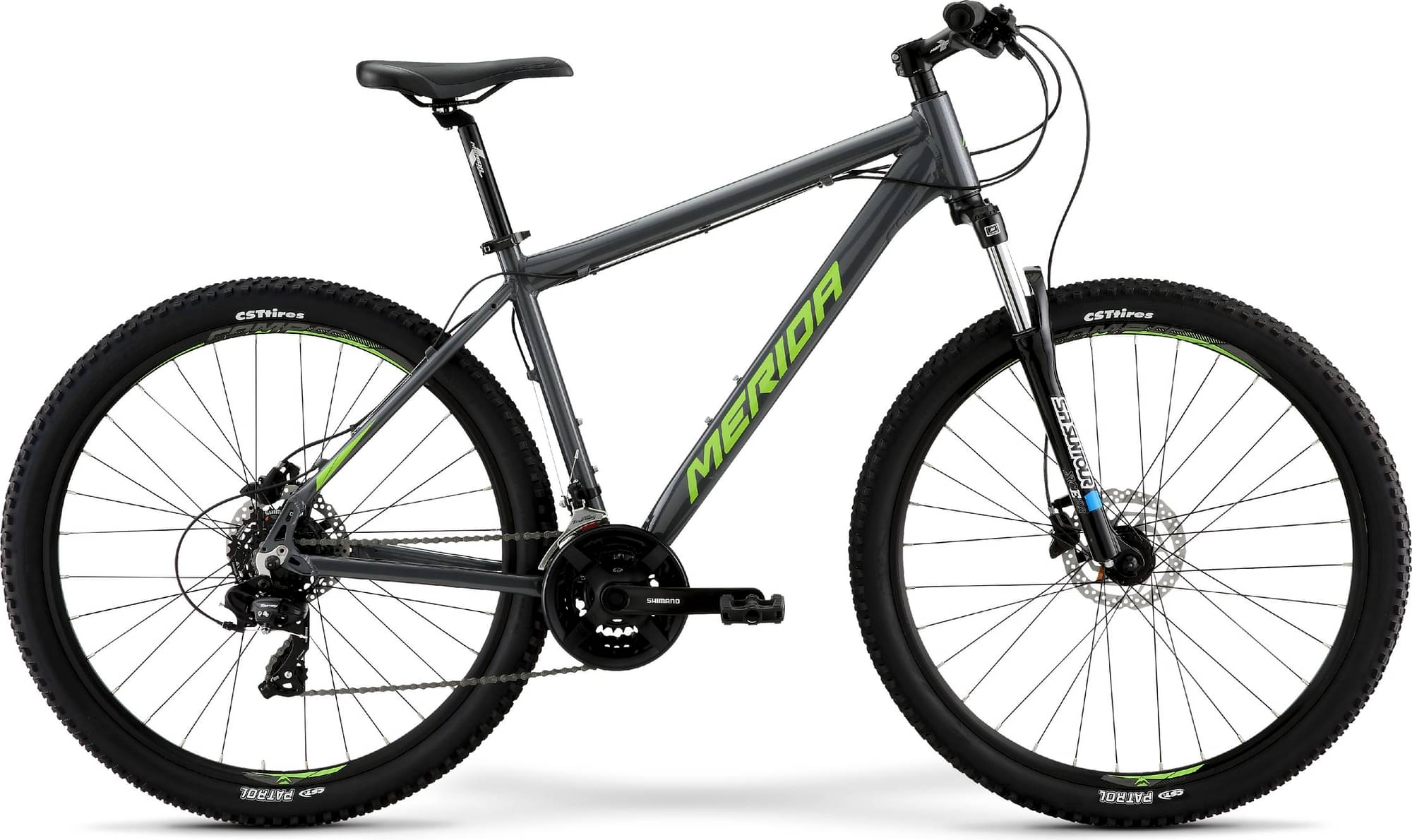

BIG.SEVEN 10-D is a Merida Bigseven model. Merida launched 161 bikes of this model so far. You can easily view all of the Merida Bigseven bikes models from 2022, here.
Model range prices
The most economical model, the Merida BIG.SEVEN 10-MD (3X) 2022 has a starting price of 407$. Merida BIG.SEVEN 300 2022 on the other hand is the most expensive at 827$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This bike has the Suntour XCE fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the BIG.SEVEN 10-D bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The BIG.SEVEN 10-D comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
