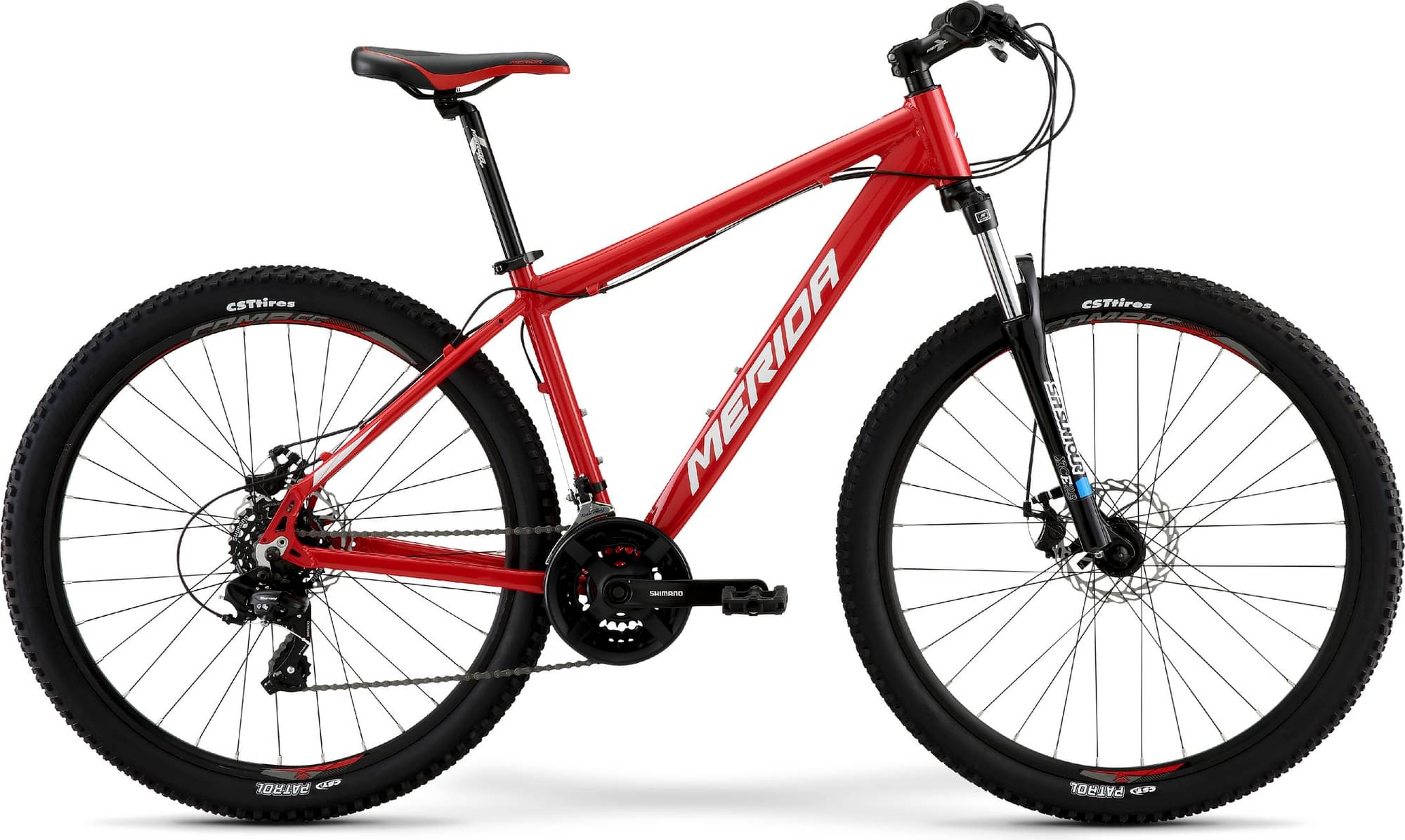

Merida BIG.SEVEN 10-MD (3X) 2023
2023 Mountain
Estimate price |
453$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork Suntour XCE -
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 2 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN SPEED
Suspension Fork
Suntour XCE28
Drivetrain
Rear Derailleur
Shimano TY300, TOURNEY
Front Derailleur
Shimano TY300, TOURNEY
Shift Levers
Shimano ST-EF500
Cassette
Shimano CS-HG200-12-32, 7s
Crank
Samox SAC26-526P; 24-34-42 ATC
Chain
CN-7s
Wheels
Front Hub
Alloy Disc, Quick Release
Rear Hub
Alloy Disc, Quick Release
Rims
MERIDA double D, alloy
Tires
CST PATROL (27.5x2.25")
Brakes
Brakes
Jak-7 Mechanical Disc
Cockpit
Handlebar
MERIDA Comp
Headset
A-Head OS
Seat
Saddle
Merida Comfort DDK-200
Seatpost
MERIDA Speed
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.57 mm | 1.57 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 618 mm | 629 mm | 633 mm | 643 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 85 mm | 85 mm | 81 mm | 81 mm |
| Stack | 587 mm | 592 mm | 603 mm | 613 mm |
| Reach | 368 mm | 377 mm | 383 mm | 390 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1036 mm | 1047 mm | 1051 mm | 1062 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 644 mm | 680 mm | 725 mm | 758 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
BIG.SEVEN 10-MD (3X) is a Merida Bigseven model. There are 161 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida BIG.SEVEN 10-MD (3X) 2023 is the most economical model, with a starting price of 407$. Merida BIG.SEVEN 200 2023 on the other hand costs 700$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2023 for 407$. Comparing this to the average Crosscountry bike price, we see that the price is 368.06% lower.
BIG.SEVEN 10-MD (3X) components
Fork
The Suntour XCE is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the BIG.SEVEN 10-MD (3X) bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida BIG.SEVEN 10-MD (3X) is equipped with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Merida BIG.SEVEN 10-MD (3X) bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
