Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN CF3
Suspension Fork
Manitou Machete Comp 100mm travel air fork with tapered steerer, 15mm bolt through axle with remote lockout
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Shift Levers
Shimano SLX 11 speed rapid fire
Cassette
Sunrace CSMX80, 11 speed, 11-50 teeth
Crank
Shimano SLX 30 teeth
Chain
KMC X11-1
Wheels
Front Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rear Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rims
MERIDA BIG.NINE Comp CC
Spokes
Black stainless
Tires
Maxxis Ikon 27.5 2.2" folding
Brakes
Brakes
Shimano M315 hydraulic disc, 180mm / 160mm rotors
Brake Levers
Shimano M315
Cockpit
Handlebar
MERIDA Expert CC 720mm wide flat
Headset
FSA NO.55E
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.54 mm | 1.49 mm | 1.45 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 656 mm | 655 mm | 676 mm | 696 mm |
| Rake | 59 mm | 46 mm | 46 mm | 46 mm |
| Trail | 73 mm | 80 mm | 80 mm | 80 mm |
| Stack | 560 mm | 610 mm | 615 mm | 624 mm |
| Reach | 390 mm | 395 mm | 414 mm | 431 mm |
| Top Tube Length | 558 mm | 578 mm | 598 mm | 618 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 342 mm | 380 mm | 444 mm | 483 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 95 mm | 100 mm | 110 mm |
| Chainstay Length | 416 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1064 mm | 1073 mm | 1094 mm | 1114 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 660 mm | 674 mm | 737 mm | 771 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

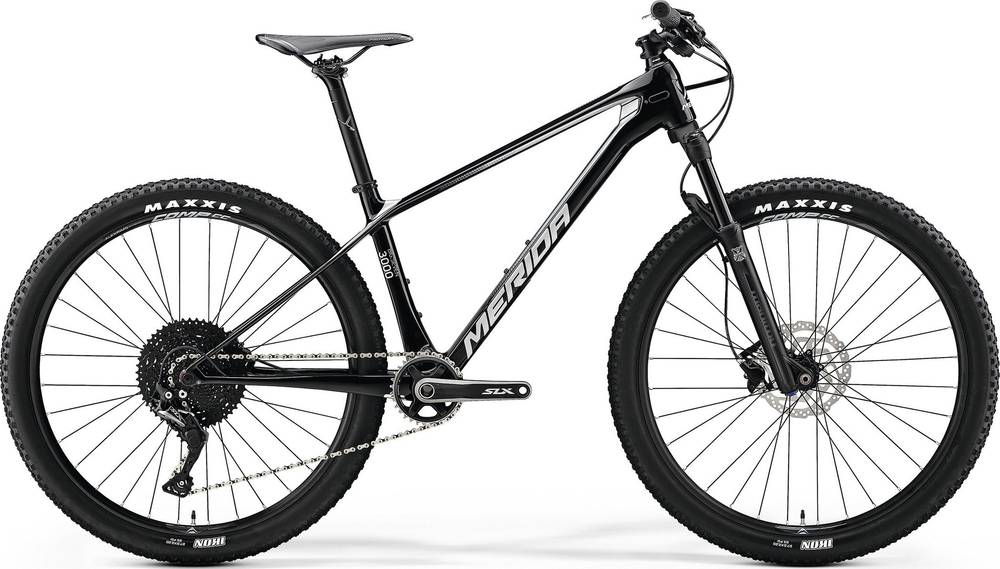

BIG.SEVEN 3000 completes the Merida Bigseven model. Merida launched 161 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 11.12 kg (24.52 lbs), Merida bike is considerably lighter than average. In other words, this model is 11.51% lighter than the average Crosscountry bike.
Overview of components
Fork
The BIG.SEVEN 3000 comes factory-installed with the Manitou Machete Comp fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida BIG.SEVEN 3000 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The BIG.SEVEN 3000 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Merida BIG.SEVEN 3000 bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
